Schema jadex-0.94.xsd

schema location:	http://jadex.sourceforge.net/jadex-0.94.xsd
targetNamespace:	http://jadex.sourceforge.net/jadex

Elements	Complex types
agent	MAchieveGoal
capability	MAchieveGoalReference
properties	MAssign
	MBase
	MBDIAgent
	MBelief
	MBeliefbase
	MBeliefReference
	MBeliefSet
	MBeliefSetReference
	MBindingCondition
	MCapability
	MCapabilityReference

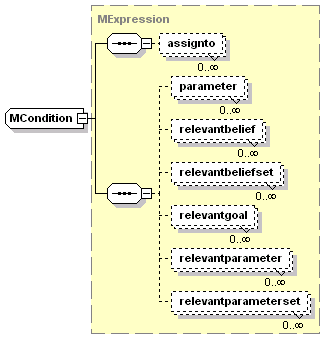

	MCondition

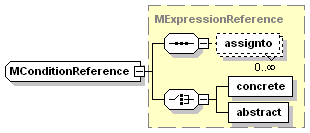

	MConditionReference
	MDeliberation
	MDummyPlan
	MElement
	MElementReference
	MEvent
	MEventbase
	MEventReference
	MExpression
	MExpressionbase
	MExpressionParameter

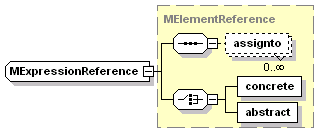

	MExpressionReference
	MGoal
	MGoalbase
	MGoalEvent

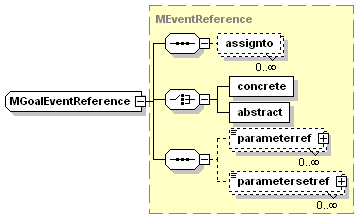

	MGoalEventReference

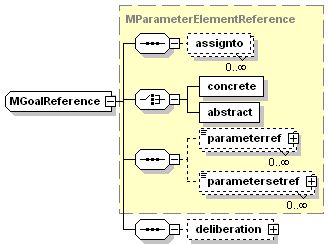

	MGoalReference

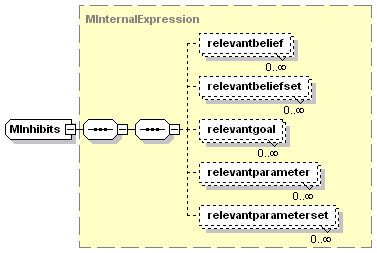

	MInhibits
	MInitialBase
	MInitialBelief
	MInitialBeliefbase
	MInitialBeliefSet
	MInitialCapability
	MInitialCapabilitybase
	MInitialElement
	MInitialEventbase
	MInitialGoal
	MInitialGoalbase
	MInitialInternalEvent
	MInitialMessageEvent
	MInitialParameter
	MInitialParameterElement
	MInitialParameterSet
	MInitialPlan
	MInitialPlanbase
	MInitialReferenceableElement
	MInitialState
	MInitialStatebase
	MInternalCondition

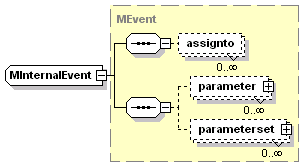

	MInternalEvent
	MInternalEventReference

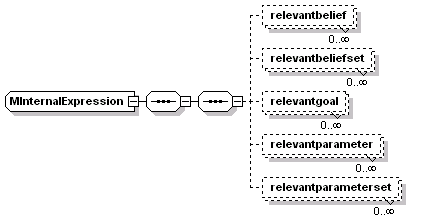

	MInternalExpression
	MMaintainGoal
	MMaintainGoalReference

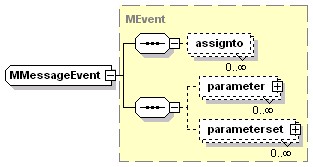

	MMessageEvent
	MMessageEventReference
	MMetaGoal

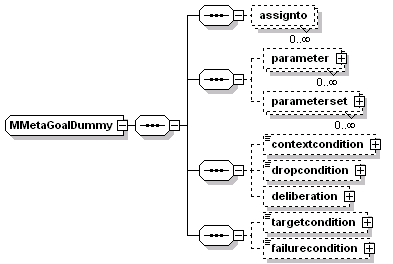

	MMetaGoalDummy
	MMetaGoalReference

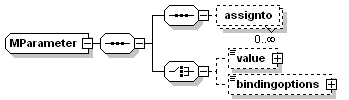

	MParameter
	MParameterElement

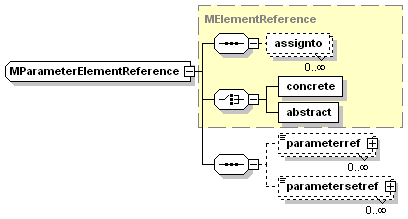

	MParameterElementReference
	MParameterReference
	MParameterSet
	MParameterSetReference

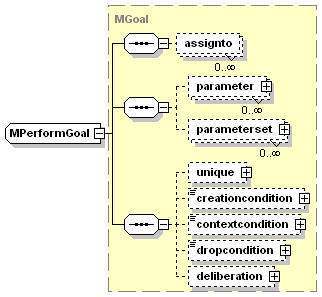

	MPerformGoal
	MPerformGoalReference
	MPlan
	MPlanbase
	MPlanBody
	MPlanParameter
	MPlanParameterSet
	MPlanReference
	MPlanTrigger
	MPropertybase

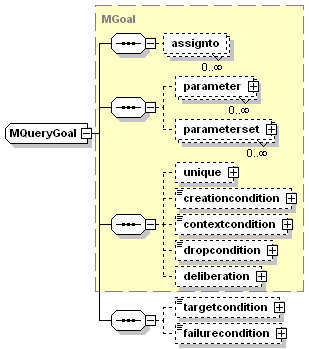

	MQueryGoal

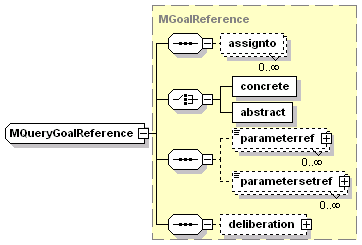

	MQueryGoalReference
	MReference
	MReferenceableElement
	MReferenceParameter
	MRelevantElement
	MStaticValue
	MTrigger
	MTypedElement
	MTypedElementReference
	MTypedElementSet
	MTypedElementSetReference
	MUnique

element agent

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MBDIAgent
children	imports capabilities beliefs goals plans events expressions properties initialstates
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. package   xs:string   optional         documentation  The package to which this capability belongs. abstract   xs:boolean   optional   false      documentation  When a capability is declared as abstract, it cannot be used directly for execution. Instead there need to be some implementation for this capability that will be resolved from the capability identifier. propertyfile   xs:string   optional   jadex.config.runtime
annotation	documentation  Defines a new agent type.

element capability

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MCapability
children	imports capabilities beliefs goals plans events expressions properties initialstates
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. package   xs:string   optional         documentation  The package to which this capability belongs. abstract   xs:boolean   optional   false      documentation  When a capability is declared as abstract, it cannot be used directly for execution. Instead there need to be some implementation for this capability that will be resolved from the capability identifier.
annotation	documentation  Defines a new capability type.

element properties

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MPropertybase
children	property
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Defines a new property file.

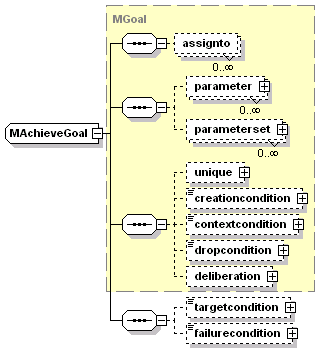

complexType MAchieveGoal

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MGoal
children	assignto parameter parameterset unique creationcondition contextcondition dropcondition deliberation targetcondition failurecondition
used by	element  MGoalbase/achievegoal
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. retry   xs:boolean      true      documentation  The retry flag can be used to determine the behaviour on plan failures. If retry is turned on (by default it is on) and a plan fails to achieve the considered goal another plan from the applicables plan list will be chosen for execution. metalevelreasoning   xs:boolean      true      documentation  The meta-level reasoning flag can be used to determine the behaviour when more than plan is applicable for a given goal. If meta-level reasoning is turned on (by default it is on) and more than one plan are applicable, meta-level reasoning is used to select among the different plan candidates. If turned on, a meta-goal will be searched and used to select among the candidates. If turned off, a simple ranking is build depending on the priority of the candidate. To further distinguish between candidates with the same priority the rank is used (plan instance -> plan -> plan waitqueue). If also the rank is equal the declaration order of plans n the ADF is used for the selection. randomselection   xs:boolean      false      documentation  Random selection can be used to choose among applicable plans for a given goal randomly. If used this flag makes the order of plan declaration within the ADF unimportantly, i.e. only random selection is only applied to plans of the same priority and rank (cf. mlreasoning comment). The mechanism is implemented in the jadex.impl.DefaultMetaLevelReasoner. retrydelay   xs:long      0      documentation  With the retrydelay the delay between the failure of one plan and the execution of the next plan can be specified in milliseconds. exclude   xs:string      when_tried      documentation  The exclude flag can be specified when a plan will be excluded from the applicable plan list. The default is when_tried, which means that a candidate is excluded independently of its state when executed one time for a goal. Other options are when_succeeded, when_failed and never. posttoall   xs:boolean      false      documentation  When post-to-all is set to true (default is false), a goal is dispatched to all candidates of the applicable plan list at once. This process will only happen one time regardless of the retry settings. A post-to-all goal has implicit or semantics meaning that if one plan achieves the goal all others will be terminated.
annotation	documentation  An achieve goal aims at bringing about a target state.

element MAchieveGoal/targetcondition

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalCondition
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported      prohibited         evaluationmode      prohibited         class      prohibited         trigger      prohibited
annotation	documentation  The target condition can be used to specify a desired world state representing goal success.

element MAchieveGoal/failurecondition

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalCondition
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported      prohibited         evaluationmode      prohibited         class      prohibited         trigger      prohibited
annotation	documentation  Can be used to explicitly state when a goal cannot be pursued any longer and is failed.

complexType MAchieveGoalReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MGoalReference
children	assignto concrete abstract parameterref parametersetref deliberation
used by	element  MGoalbase/achievegoalref
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  Reference to an achieve goal.

complexType MAssign

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MElement
used by	elements  MMetaGoalDummy/assignto MDummyPlan/assignto MParameter/assignto MParameterSet/assignto MReferenceableElement/assignto MPlanTrigger/beliefchange MPlanTrigger/beliefsetchange MElementReference/concrete MPlanTrigger/factadded MPlanTrigger/factremoved MPlanParameter/goalmapping MPlanParameterSet/goalmapping MPlanParameter/internaleventmapping MPlanParameterSet/internaleventmapping MPlanParameter/messageeventmapping MPlanParameterSet/messageeventmapping
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element.
annotation	documentation  Used to define a reference to another element.

complexType MBase

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MElement
used by	complexTypes  MBeliefbase MEventbase MExpressionbase MGoalbase MPlanbase MPropertybase
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Base type for all bases, e.g. beliefbase, planbase, goalbase, etc.

complexType MBDIAgent

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MCapability
children	imports capabilities beliefs goals plans events expressions properties initialstates
used by	element  agent
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. package   xs:string   optional         documentation  The package to which this capability belongs. abstract   xs:boolean   optional   false      documentation  When a capability is declared as abstract, it cannot be used directly for execution. Instead there need to be some implementation for this capability that will be resolved from the capability identifier. propertyfile   xs:string   optional   jadex.config.runtime
annotation	documentation  Base type for a Jadex BDI agent.

complexType MBelief

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MTypedElement
children	assignto fact
used by	element  MBeliefbase/belief
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string   required         documentation  The required Java class of the fact. Used for type checking objects that are asserted as facts. updaterate   xs:long   optional   0      documentation  For dynamic expressions the update rate defines in what intervals the fact will be re-evaluated. The default update rate is set to 0. transient   xs:boolean   optional   false      documentation  Transient beliefs or prameter values are not retained, when persisting or migrating an agent. This is useful e.g. when a value class is not serializable.
annotation	documentation  A belief represents a single-valued piece of information.

element MBelief/fact

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalExpression
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. evaluationmode   xs:string   optional         documentation  The evaluation mode determines if an expression is dynamic or static. If declared static it is only evaluated once (on creation). class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited
annotation	documentation  An expression that represents the default value. Per default it is static, i.e. it is only evalued only once on creation.

complexType MBeliefbase

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MBase
children	belief beliefset beliefref beliefsetref
used by	element  MCapability/beliefs
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Container for beliefs, beliefsets and corresponding references.

element MBeliefbase/belief

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MBelief
children	assignto fact
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string   required         documentation  The required Java class of the fact. Used for type checking objects that are asserted as facts. updaterate   xs:long   optional   0      documentation  For dynamic expressions the update rate defines in what intervals the fact will be re-evaluated. The default update rate is set to 0. transient   xs:boolean   optional   false      documentation  Transient beliefs or prameter values are not retained, when persisting or migrating an agent. This is useful e.g. when a value class is not serializable.
annotation	documentation  A single-valued piece of agent knowlegde.

element MBeliefbase/beliefset

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MBeliefSet
children	assignto fact facts
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string   required         documentation  The required Java class of the fact. Used for type checking objects that are asserted as facts. updaterate   xs:long   optional   0      documentation  For dynamic expressions the update rate defines in what intervals the fact will be re-evaluated. The default update rate is set to 0. transient   xs:boolean   optional   false      documentation  Transient beliefs or prameter values are not retained, when persisting or migrating an agent. This is useful e.g. when a value class is not serializable.
annotation	documentation  A multi-valued piece of agent knowlegde.

element MBeliefbase/beliefref

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MBeliefReference
children	assignto concrete abstract
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string            documentation  The class of the contained value. In the reference this value can be overridden to allow specializations for derived types.
annotation	documentation  A concrete reference to a belief(ref) in another capability (concrete) or an abstract belief that needs assigment from the using capability.

element MBeliefbase/beliefsetref

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MBeliefSetReference
children	assignto concrete abstract
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string            documentation  The class of the contained value. In the reference this value can be overridden to allow specializations for derived types.
annotation	documentation  A concrete reference to a beliefset(ref) in another capability (concrete) or an abstract beliefset that needs assigment from the using capability.

complexType MBeliefReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MTypedElementReference
children	assignto concrete abstract
used by	element  MBeliefbase/beliefref
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string            documentation  The class of the contained value. In the reference this value can be overridden to allow specializations for derived types.
annotation	documentation  Reference to a belief.

complexType MBeliefSet

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MTypedElementSet
children	assignto fact facts
used by	element  MBeliefbase/beliefset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string   required         documentation  The required Java class of the fact. Used for type checking objects that are asserted as facts. updaterate   xs:long   optional   0      documentation  For dynamic expressions the update rate defines in what intervals the fact will be re-evaluated. The default update rate is set to 0. transient   xs:boolean   optional   false      documentation  Transient beliefs or prameter values are not retained, when persisting or migrating an agent. This is useful e.g. when a value class is not serializable.
annotation	documentation  A belief represents a multi-valued piece of information.

element MBeliefSet/fact

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MStaticValue
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited         evaluationmode      prohibited
annotation	documentation  An expression that evaluated to a default value. Only static values are allowed, i.e. it is only evaluated once on creation.

element MBeliefSet/facts

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalExpression
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. evaluationmode   xs:string   optional         documentation  The evaluation mode determines if an expression is dynamic or static. If declared static it is only evaluated once (on creation). class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited
annotation	documentation  An expression that is evaluated to a set of default values. Per default it is static, i.e. it is only evalued only once on creation.

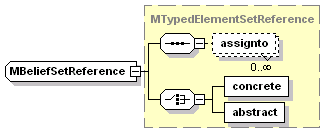

complexType MBeliefSetReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MTypedElementSetReference
children	assignto concrete abstract
used by	element  MBeliefbase/beliefsetref
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string            documentation  The class of the contained value. In the reference this value can be overridden to allow specializations for derived types.
annotation	documentation  Reference to a belief set.

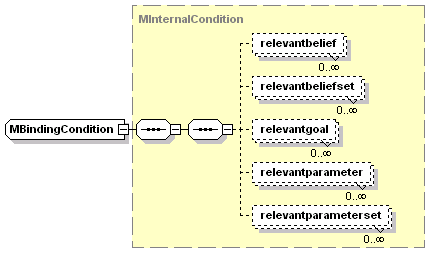

complexType MBindingCondition

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MInternalCondition
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
used by	elements  MPlanTrigger/condition MGoal/creationcondition
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported      prohibited         evaluationmode      prohibited         class      prohibited         trigger      prohibited
annotation	documentation  A condition used for binding purposes (multiple variable assignmnets).

complexType MCapability

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MElement
children	imports capabilities beliefs goals plans events expressions properties initialstates
used by	element  capability complexType  MBDIAgent
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. package   xs:string   optional         documentation  The package to which this capability belongs. abstract   xs:boolean   optional   false      documentation  When a capability is declared as abstract, it cannot be used directly for execution. Instead there need to be some implementation for this capability that will be resolved from the capability identifier.
annotation	documentation  Base type for a capability.

element MCapability/imports

diagram
namespace	http://jadex.sourceforge.net/jadex
children	import
annotation	documentation  In the imports section single classes, packages and Capability files and packages can be imported with arbitrarily many import statements. Once imported the short Class resp. Capability name can be used to refer to such an element.

element MCapability/imports/import

diagram
namespace	http://jadex.sourceforge.net/jadex
type	xs:string
annotation	documentation  An import statement allows to import one class, package resp. Capability file.

element MCapability/capabilities

diagram
namespace	http://jadex.sourceforge.net/jadex
children	capability
annotation	documentation  In the capabilities section arbitrary many capabilities can be declared. The functionality of a capability can be used within the agent resp. capability.

element MCapability/capabilities/capability

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MCapabilityReference
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. file   xs:string   required         documentation  The capability to include. The file can be either referenced by an unqualified or qualified name, e.g. name or package.name, or by a filename relative to the classpath, e.g., package/name.capability.xml. Abstract capabilities like the DF capability have to be referenced by the fully qualified name (i.e., jadex.planlib.DF), because these capabilities are resolved by this identifier using the platform configuration.
annotation	documentation  A capability usage declaration must include the local name of this capability (symbolic name) and the capability's type name (file) or an identifier for its identification.

element MCapability/beliefs

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MBeliefbase
children	belief beliefset beliefref beliefsetref
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  In the beliefs section single-valued beliefs or multi-valued belief-references can be declared. Additionally references to exported or abstract beliefs of other capabilities can be specified.

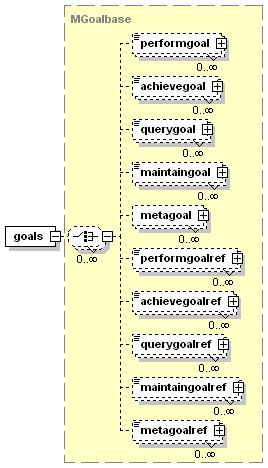

element MCapability/goals

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MGoalbase
children	performgoal achievegoal querygoal maintaingoal metagoal performgoalref achievegoalref querygoalref maintaingoalref metagoalref
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  In this section different kinds of goals and goal references can be specified. Supported goal types are perform, achieve, query, maintain and meta goals. Also refernces for all types can be specified.

element MCapability/plans

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MPlanbase
children	plan
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  In this section plans can be specified.

element MCapability/events

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MEventbase
children	internalevent messageevent goalevent internaleventref messageeventref goaleventref
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  In this section internal and message events can be specified. Also references for both can be declared.

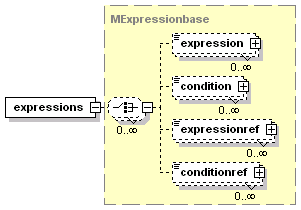

element MCapability/expressions

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MExpressionbase
children	expression condition expressionref conditionref
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  In this section predefined expressions and conditions can be declared. Also references for both can be declared.

element MCapability/properties

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MPropertybase
children	property
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  In this section arbitrary properties can be specified.

element MCapability/initialstates

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInitialStatebase
children	initialstate
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. default   xs:string   optional         documentation  The default initial state name. Will be used to choose the initial state among multiple initial state definitions. If no default is explicitly stated, the first will be selected.
annotation	documentation  In this section arbitrary many initial capability states can be defined. Such a state is used for initialization when an agent is born.

complexType MCapabilityReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MElement
used by	element  MCapability/capabilities/capability
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. file   xs:string   required         documentation  The capability to include. The file can be either referenced by an unqualified or qualified name, e.g. name or package.name, or by a filename relative to the classpath, e.g., package/name.capability.xml. Abstract capabilities like the DF capability have to be referenced by the fully qualified name (i.e., jadex.planlib.DF), because these capabilities are resolved by this identifier using the platform configuration.
annotation	documentation  Describes and defines an included capability.

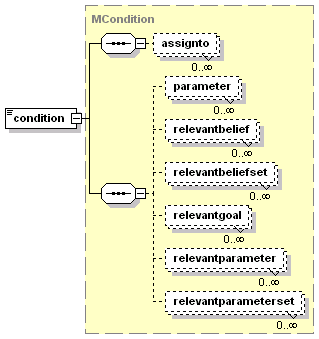

complexType MCondition

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MExpression
children	assignto parameter relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
used by	element  MExpressionbase/condition complexType  MInternalCondition
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. evaluationmode   xs:string   optional         documentation  The evaluation mode determines if an expression is dynamic or static. If declared static it is only evaluated once (on creation). class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. trigger   xs:string   optional         documentation  The trigger specifies the circumstances under which a condition triggers. Possible settings are changes_to_true, changes_to_false, is_true, is_false, changes and always.
annotation	documentation  An expression that is monitored.

complexType MConditionReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MExpressionReference
children	assignto concrete abstract
used by	element  MExpressionbase/conditionref
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  Reference to a condition.

complexType MDeliberation

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MElement
children	inhibits
used by	elements  MGoal/deliberation MMetaGoalDummy/deliberation MGoalReference/deliberation
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. cardinality   xs:int   optional   -1      documentation  The cardinality specifies how many active goal instances of the given type can exist. The default is -1 meaning that a unlimited number of goals are permitted being active.
annotation	documentation  Easy deliberation settings for goals (cardinality and inhibitions).

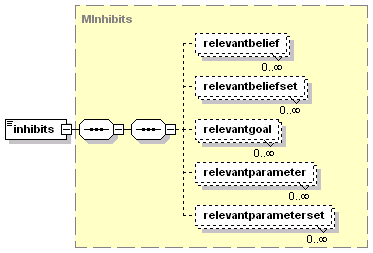

element MDeliberation/inhibits

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInhibits
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. evaluationmode   xs:string   optional         documentation  The evaluation mode determines if an expression is dynamic or static. If declared static it is only evaluated once (on creation). class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited         ref   xs:string   required         documentation  The name of the goal to inhibit. inhibit   xs:string   optional   when_active      documentation  In which state other goals should be inhibited. The default is when_active. For maintain this should normally be changed to when_in_process as maintain goals are homeostatic and active longer than other goal types.
annotation	documentation  Any number of inhibitions can be specified. One inhibition specifies under which circumstances a referenced goal is inhibited.

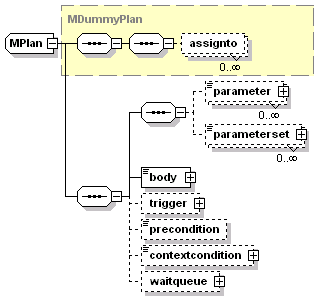

complexType MDummyPlan

diagram
namespace	http://jadex.sourceforge.net/jadex
type	restriction of MParameterElement
children	assignto
used by	complexType  MPlan
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  Used only internally.

element MDummyPlan/assignto

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MAssign
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element.
annotation	documentation  Assign this element to an abstract element of another capability.

complexType MElement

diagram
namespace	http://jadex.sourceforge.net/jadex
used by	complexTypes  MAssign MBase MCapability MCapabilityReference MDeliberation MExpressionParameter MInitialBase MInitialElement MInitialState MReference MReferenceableElement MReferenceParameter MRelevantElement MTrigger MUnique
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Base type for all model elements.

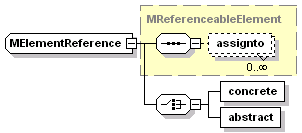

complexType MElementReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MReferenceableElement
children	assignto concrete abstract
used by	complexTypes  MExpressionReference MParameterElementReference MPlanReference MTypedElementReference MTypedElementSetReference
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  Base type for element references, i.e. elements that reference others.

element MElementReference/concrete

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MAssign
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element.
annotation	documentation  A concrete reference to an element that is conatined in some included subcapability. Dot notation is used for referencing the other element, e.g. subcapname.elemname

element MElementReference/abstract

diagram
namespace	http://jadex.sourceforge.net/jadex
attributes	Name   Type   Use   Default   Fixed   Annotation required   xs:boolean   optional   true      documentation  If an abstract element is required, a capability wants to use this capability is forced to assign an element to this abstract reference. Per default abstract alements are required.
annotation	documentation  The reference is abstract. This means that an outer capability can assign an element to this reference. If required this assignment is needed. Otherwise the element can potentially be unbounded.

complexType MEvent

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MParameterElement
children	assignto parameter parameterset
used by	complexTypes  MGoalEvent MInternalEvent MMessageEvent
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. posttoall   xs:boolean   optional         documentation  When post-to-all is set to true (default is true only for internal events), an event is dispatched to all candidates of the applicable plan list at once. metalevelreasoning   xs:boolean   optional         documentation  The meta-level reasoning flag can be used to determine the behaviour when more than plan is applicable for a given event. If meta-level reasoning is turned on (by default it is on) and more than one plan are applicable, meta-level reasoning is used to select among the different plan candidates. If turned on, a meta-goal will be searched and used to select among the candidates. If turned off, a simple ranking is build depending on the priority of the candidate. To further distinguish between candidates with the same priority the rank is used (plan instance -> plan -> plan waitqueue). If also the rank is equal the declaration order of plans n the ADF is used for the selection. randomselection   xs:boolean   optional         documentation  Random selection can be used to choose among applicable plans for a given goal randomly. If used this flag makes the order of plan declaration within the ADF unimportantly, i.e. only random selection is only applied to plans of the same priority and rank (cf. mlreasoning comment). The mechanism is implemented in the jadex.impl.DefaultMetaLevelReasoner.
annotation	documentation  Base type for all events.

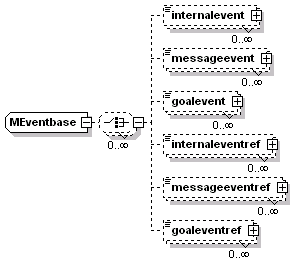

complexType MEventbase

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MBase
children	internalevent messageevent goalevent internaleventref messageeventref goaleventref
used by	element  MCapability/events
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Container for internal, message events and corresponding references.

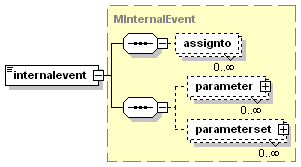

element MEventbase/internalevent

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalEvent
children	assignto parameter parameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. posttoall   xs:boolean   optional         documentation  When post-to-all is set to true (default is true only for internal events), an event is dispatched to all candidates of the applicable plan list at once. metalevelreasoning   xs:boolean   optional         documentation  The meta-level reasoning flag can be used to determine the behaviour when more than plan is applicable for a given event. If meta-level reasoning is turned on (by default it is on) and more than one plan are applicable, meta-level reasoning is used to select among the different plan candidates. If turned on, a meta-goal will be searched and used to select among the candidates. If turned off, a simple ranking is build depending on the priority of the candidate. To further distinguish between candidates with the same priority the rank is used (plan instance -> plan -> plan waitqueue). If also the rank is equal the declaration order of plans n the ADF is used for the selection. randomselection   xs:boolean   optional         documentation  Random selection can be used to choose among applicable plans for a given goal randomly. If used this flag makes the order of plan declaration within the ADF unimportantly, i.e. only random selection is only applied to plans of the same priority and rank (cf. mlreasoning comment). The mechanism is implemented in the jadex.impl.DefaultMetaLevelReasoner.
annotation	documentation  An internal event is used for agent internal event notification. It represents a one-way information flow as the event thrower cannot obtain information about the result of event processing.

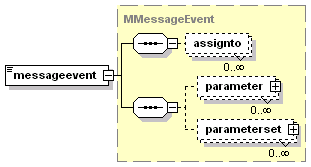

element MEventbase/messageevent

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MMessageEvent
children	assignto parameter parameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. posttoall   xs:boolean   optional         documentation  When post-to-all is set to true (default is true only for internal events), an event is dispatched to all candidates of the applicable plan list at once. metalevelreasoning   xs:boolean   optional         documentation  The meta-level reasoning flag can be used to determine the behaviour when more than plan is applicable for a given event. If meta-level reasoning is turned on (by default it is on) and more than one plan are applicable, meta-level reasoning is used to select among the different plan candidates. If turned on, a meta-goal will be searched and used to select among the candidates. If turned off, a simple ranking is build depending on the priority of the candidate. To further distinguish between candidates with the same priority the rank is used (plan instance -> plan -> plan waitqueue). If also the rank is equal the declaration order of plans n the ADF is used for the selection. randomselection   xs:boolean   optional         documentation  Random selection can be used to choose among applicable plans for a given goal randomly. If used this flag makes the order of plan declaration within the ADF unimportantly, i.e. only random selection is only applied to plans of the same priority and rank (cf. mlreasoning comment). The mechanism is implemented in the jadex.impl.DefaultMetaLevelReasoner. direction   xs:string   optional   send_receive      documentation  Specifies the direction of the message. Possible values are send, receive and send_receive. type   xs:string   required         documentation  The message type defines the predefined names and types of parameters. Possible values are fipa.
annotation	documentation  A message event is used for inter-agent communication.

element MEventbase/goalevent

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MGoalEvent
children	assignto parameter parameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. posttoall   xs:boolean   optional         documentation  When post-to-all is set to true (default is true only for internal events), an event is dispatched to all candidates of the applicable plan list at once. metalevelreasoning   xs:boolean   optional         documentation  The meta-level reasoning flag can be used to determine the behaviour when more than plan is applicable for a given event. If meta-level reasoning is turned on (by default it is on) and more than one plan are applicable, meta-level reasoning is used to select among the different plan candidates. If turned on, a meta-goal will be searched and used to select among the candidates. If turned off, a simple ranking is build depending on the priority of the candidate. To further distinguish between candidates with the same priority the rank is used (plan instance -> plan -> plan waitqueue). If also the rank is equal the declaration order of plans n the ADF is used for the selection. randomselection   xs:boolean   optional         documentation  Random selection can be used to choose among applicable plans for a given goal randomly. If used this flag makes the order of plan declaration within the ADF unimportantly, i.e. only random selection is only applied to plans of the same priority and rank (cf. mlreasoning comment). The mechanism is implemented in the jadex.impl.DefaultMetaLevelReasoner.
annotation	documentation  Do not use. Is only used system internally.

element MEventbase/internaleventref

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalEventReference
children	assignto concrete abstract parameterref parametersetref
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  A concrete reference to an internalevent(ref) in another capability (concrete) or an abstract event that needs assigment from the using capability.

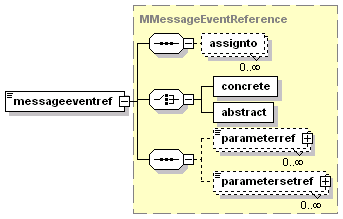

element MEventbase/messageeventref

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MMessageEventReference
children	assignto concrete abstract parameterref parametersetref
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  A concrete reference to an messageevent(ref) in another capability (concrete) or an abstract event that needs assigment from the using capability.

element MEventbase/goaleventref

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MGoalEventReference
children	assignto concrete abstract parameterref parametersetref
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  Do not use. Is only used system internally.

complexType MEventReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MParameterElementReference
children	assignto concrete abstract parameterref parametersetref
used by	complexTypes  MGoalEventReference MInternalEventReference MMessageEventReference
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  Reference to an event.

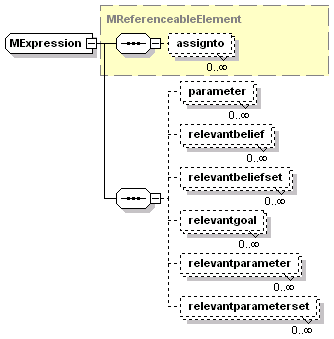

complexType MExpression

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MReferenceableElement
children	assignto parameter relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
used by	element  MExpressionbase/expression complexTypes  MCondition MInternalExpression
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. evaluationmode   xs:string   optional         documentation  The evaluation mode determines if an expression is dynamic or static. If declared static it is only evaluated once (on creation). class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result.
annotation	documentation  A piece a program code that is evaluated.

element MExpression/parameter

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MExpressionParameter
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. class   xs:string   required         documentation  The Java class of the user-defined parameter.
annotation	documentation  Any number of typed expression parameters. For evaluation specific parameter values have to be provieded. Allows parametrized queries being specified.

element MExpression/relevantbelief

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MRelevantElement
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. eventtype   xs:string   optional         documentation  The eventtype that is of interest for the expression/condition that specifies the relevant element. ref   xs:string   required         documentation  The name of the referenced element that is relevant for the expression/condition that specifies the relevant element.
annotation	documentation  Any number of beliefs that should cause a re-evaluation of this expression.

element MExpression/relevantbeliefset

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MRelevantElement
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. eventtype   xs:string   optional         documentation  The eventtype that is of interest for the expression/condition that specifies the relevant element. ref   xs:string   required         documentation  The name of the referenced element that is relevant for the expression/condition that specifies the relevant element.
annotation	documentation  Any number of belief sets that should cause a re-evaluation of this expression.

element MExpression/relevantgoal

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MRelevantElement
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. eventtype   xs:string   optional         documentation  The eventtype that is of interest for the expression/condition that specifies the relevant element. ref   xs:string   required         documentation  The name of the referenced element that is relevant for the expression/condition that specifies the relevant element.
annotation	documentation  Any number of goals that should cause a re-evaluation of this expression.

element MExpression/relevantparameter

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MRelevantElement
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. eventtype   xs:string   optional         documentation  The eventtype that is of interest for the expression/condition that specifies the relevant element. ref   xs:string   required         documentation  The name of the referenced element that is relevant for the expression/condition that specifies the relevant element.
annotation	documentation  Any number of parameters that should cause a re-evaluation of this expression.

element MExpression/relevantparameterset

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MRelevantElement
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. eventtype   xs:string   optional         documentation  The eventtype that is of interest for the expression/condition that specifies the relevant element. ref   xs:string   required         documentation  The name of the referenced element that is relevant for the expression/condition that specifies the relevant element.
annotation	documentation  Any number of parameter sets that should cause a re-evaluation of this expression.

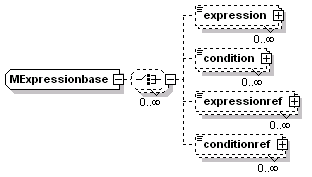

complexType MExpressionbase

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MBase
children	expression condition expressionref conditionref
used by	element  MCapability/expressions
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Container for expressions, conditions and corresponding references.

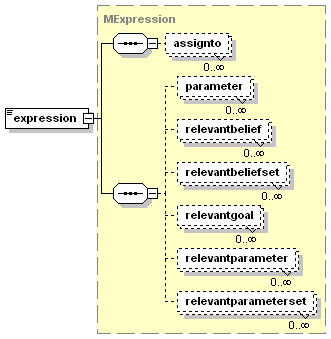

element MExpressionbase/expression

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MExpression
children	assignto parameter relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. evaluationmode   xs:string   optional         documentation  The evaluation mode determines if an expression is dynamic or static. If declared static it is only evaluated once (on creation). class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result.
annotation	documentation  An expression can be used for information querying. Parametrized expressions need explicitly to defined their input parameters.

element MExpressionbase/condition

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MCondition
children	assignto parameter relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. evaluationmode   xs:string   optional         documentation  The evaluation mode determines if an expression is dynamic or static. If declared static it is only evaluated once (on creation). class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. trigger   xs:string   optional         documentation  The trigger specifies the circumstances under which a condition triggers. Possible settings are changes_to_true, changes_to_false, is_true, is_false, changes and always.
annotation	documentation  A condition can be used for waiting for certain world states. Parametrized conditions need explicitly to defined their input parameters.

element MExpressionbase/expressionref

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MExpressionReference
children	assignto concrete abstract
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  A concrete reference to an expression(ref) in another capability (concrete) or an abstract expression that needs assigment from the using capability.

element MExpressionbase/conditionref

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MConditionReference
children	assignto concrete abstract
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  A concrete reference to a condition(ref) in another capability (concrete) or an abstract condition that needs assigment from the using capability.

complexType MExpressionParameter

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MElement
used by	element  MExpression/parameter
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. class   xs:string   required         documentation  The Java class of the user-defined parameter.
annotation	documentation  A user-defined parameter for an expression, e.g. for parametrized queries.

complexType MExpressionReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MElementReference
children	assignto concrete abstract
used by	element  MExpressionbase/expressionref complexType  MConditionReference
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  Reference to an expression.

complexType MGoal

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MParameterElement
children	assignto parameter parameterset unique creationcondition contextcondition dropcondition deliberation
used by	complexTypes  MAchieveGoal MMaintainGoal MPerformGoal MQueryGoal
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. retry   xs:boolean      true      documentation  The retry flag can be used to determine the behaviour on plan failures. If retry is turned on (by default it is on) and a plan fails to achieve the considered goal another plan from the applicables plan list will be chosen for execution. metalevelreasoning   xs:boolean      true      documentation  The meta-level reasoning flag can be used to determine the behaviour when more than plan is applicable for a given goal. If meta-level reasoning is turned on (by default it is on) and more than one plan are applicable, meta-level reasoning is used to select among the different plan candidates. If turned on, a meta-goal will be searched and used to select among the candidates. If turned off, a simple ranking is build depending on the priority of the candidate. To further distinguish between candidates with the same priority the rank is used (plan instance -> plan -> plan waitqueue). If also the rank is equal the declaration order of plans n the ADF is used for the selection. randomselection   xs:boolean      false      documentation  Random selection can be used to choose among applicable plans for a given goal randomly. If used this flag makes the order of plan declaration within the ADF unimportantly, i.e. only random selection is only applied to plans of the same priority and rank (cf. mlreasoning comment). The mechanism is implemented in the jadex.impl.DefaultMetaLevelReasoner. retrydelay   xs:long      0      documentation  With the retrydelay the delay between the failure of one plan and the execution of the next plan can be specified in milliseconds. exclude   xs:string      when_tried      documentation  The exclude flag can be specified when a plan will be excluded from the applicable plan list. The default is when_tried, which means that a candidate is excluded independently of its state when executed one time for a goal. Other options are when_succeeded, when_failed and never. posttoall   xs:boolean      false      documentation  When post-to-all is set to true (default is false), a goal is dispatched to all candidates of the applicable plan list at once. This process will only happen one time regardless of the retry settings. A post-to-all goal has implicit or semantics meaning that if one plan achieves the goal all others will be terminated.
annotation	documentation  Base type for all goals.

element MGoal/unique

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MUnique
children	exclude
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  If a goal is declared unique only one instance of this type is allowed being adopted at any one time. To determine if two goals are equal the type and parameters are used. Parameters that should not be considered can explicitly be excluded.

element MGoal/creationcondition

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MBindingCondition
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported      prohibited         evaluationmode      prohibited         class      prohibited         trigger      prohibited
annotation	documentation  A condition that creates a new goal of the given type when triggered. If binding-parameters are used for each possible binding a new goal is created.

element MGoal/contextcondition

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalCondition
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported      prohibited         evaluationmode      prohibited         class      prohibited         trigger      prohibited
annotation	documentation  The context condition is checked during the whole execution time of a goal. If it becomes invalid the goal will become suspended and is not actively pursued until reactivation.

element MGoal/dropcondition

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalCondition
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported      prohibited         evaluationmode      prohibited         class      prohibited         trigger      prohibited
annotation	documentation  If the dropcondition triggers the goal instance is dropped.

element MGoal/deliberation

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MDeliberation
children	inhibits
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. cardinality   xs:int   optional   -1      documentation  The cardinality specifies how many active goal instances of the given type can exist. The default is -1 meaning that a unlimited number of goals are permitted being active.
annotation	documentation  The goal deliberation setting for the easy deliberation strategy.

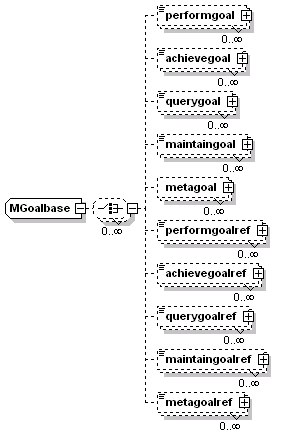

complexType MGoalbase

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MBase
children	performgoal achievegoal querygoal maintaingoal metagoal performgoalref achievegoalref querygoalref maintaingoalref metagoalref
used by	element  MCapability/goals
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Container for goals and corresponding references.

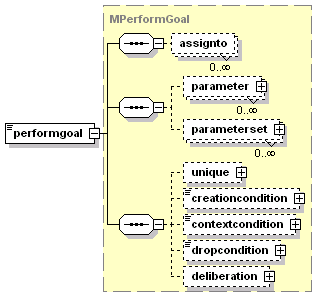

element MGoalbase/performgoal

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MPerformGoal
children	assignto parameter parameterset unique creationcondition contextcondition dropcondition deliberation
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. retry   xs:boolean      true      documentation  The retry flag can be used to determine the behaviour on plan failures. If retry is turned on (by default it is on) and a plan fails to achieve the considered goal another plan from the applicables plan list will be chosen for execution. metalevelreasoning   xs:boolean      true      documentation  The meta-level reasoning flag can be used to determine the behaviour when more than plan is applicable for a given goal. If meta-level reasoning is turned on (by default it is on) and more than one plan are applicable, meta-level reasoning is used to select among the different plan candidates. If turned on, a meta-goal will be searched and used to select among the candidates. If turned off, a simple ranking is build depending on the priority of the candidate. To further distinguish between candidates with the same priority the rank is used (plan instance -> plan -> plan waitqueue). If also the rank is equal the declaration order of plans n the ADF is used for the selection. randomselection   xs:boolean      false      documentation  Random selection can be used to choose among applicable plans for a given goal randomly. If used this flag makes the order of plan declaration within the ADF unimportantly, i.e. only random selection is only applied to plans of the same priority and rank (cf. mlreasoning comment). The mechanism is implemented in the jadex.impl.DefaultMetaLevelReasoner. retrydelay   xs:long      0      documentation  With the retrydelay the delay between the failure of one plan and the execution of the next plan can be specified in milliseconds. exclude   xs:string      when_tried      documentation  The exclude flag can be specified when a plan will be excluded from the applicable plan list. The default is when_tried, which means that a candidate is excluded independently of its state when executed one time for a goal. Other options are when_succeeded, when_failed and never. posttoall   xs:boolean      false      documentation  When post-to-all is set to true (default is false), a goal is dispatched to all candidates of the applicable plan list at once. This process will only happen one time regardless of the retry settings. A post-to-all goal has implicit or semantics meaning that if one plan achieves the goal all others will be terminated.
annotation	documentation  A perform goal is goal that is directly associalted with actions to perform.

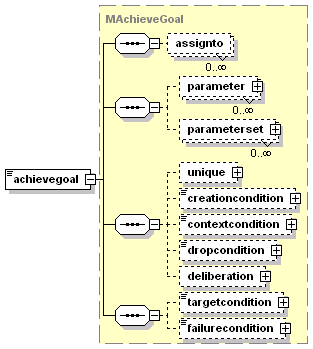

element MGoalbase/achievegoal

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MAchieveGoal
children	assignto parameter parameterset unique creationcondition contextcondition dropcondition deliberation targetcondition failurecondition
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. retry   xs:boolean      true      documentation  The retry flag can be used to determine the behaviour on plan failures. If retry is turned on (by default it is on) and a plan fails to achieve the considered goal another plan from the applicables plan list will be chosen for execution. metalevelreasoning   xs:boolean      true      documentation  The meta-level reasoning flag can be used to determine the behaviour when more than plan is applicable for a given goal. If meta-level reasoning is turned on (by default it is on) and more than one plan are applicable, meta-level reasoning is used to select among the different plan candidates. If turned on, a meta-goal will be searched and used to select among the candidates. If turned off, a simple ranking is build depending on the priority of the candidate. To further distinguish between candidates with the same priority the rank is used (plan instance -> plan -> plan waitqueue). If also the rank is equal the declaration order of plans n the ADF is used for the selection. randomselection   xs:boolean      false      documentation  Random selection can be used to choose among applicable plans for a given goal randomly. If used this flag makes the order of plan declaration within the ADF unimportantly, i.e. only random selection is only applied to plans of the same priority and rank (cf. mlreasoning comment). The mechanism is implemented in the jadex.impl.DefaultMetaLevelReasoner. retrydelay   xs:long      0      documentation  With the retrydelay the delay between the failure of one plan and the execution of the next plan can be specified in milliseconds. exclude   xs:string      when_tried      documentation  The exclude flag can be specified when a plan will be excluded from the applicable plan list. The default is when_tried, which means that a candidate is excluded independently of its state when executed one time for a goal. Other options are when_succeeded, when_failed and never. posttoall   xs:boolean      false      documentation  When post-to-all is set to true (default is false), a goal is dispatched to all candidates of the applicable plan list at once. This process will only happen one time regardless of the retry settings. A post-to-all goal has implicit or semantics meaning that if one plan achieves the goal all others will be terminated.
annotation	documentation  An achieve goal is a goal with a target state. To fulfill the goal the target state needs to be achieved.

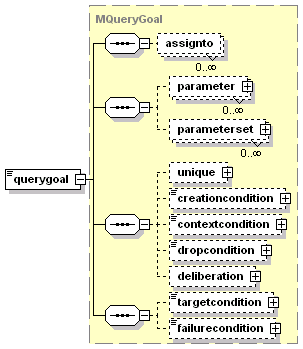

element MGoalbase/querygoal

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MQueryGoal
children	assignto parameter parameterset unique creationcondition contextcondition dropcondition deliberation targetcondition failurecondition
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. retry   xs:boolean      true      documentation  The retry flag can be used to determine the behaviour on plan failures. If retry is turned on (by default it is on) and a plan fails to achieve the considered goal another plan from the applicables plan list will be chosen for execution. metalevelreasoning   xs:boolean      true      documentation  The meta-level reasoning flag can be used to determine the behaviour when more than plan is applicable for a given goal. If meta-level reasoning is turned on (by default it is on) and more than one plan are applicable, meta-level reasoning is used to select among the different plan candidates. If turned on, a meta-goal will be searched and used to select among the candidates. If turned off, a simple ranking is build depending on the priority of the candidate. To further distinguish between candidates with the same priority the rank is used (plan instance -> plan -> plan waitqueue). If also the rank is equal the declaration order of plans n the ADF is used for the selection. randomselection   xs:boolean      false      documentation  Random selection can be used to choose among applicable plans for a given goal randomly. If used this flag makes the order of plan declaration within the ADF unimportantly, i.e. only random selection is only applied to plans of the same priority and rank (cf. mlreasoning comment). The mechanism is implemented in the jadex.impl.DefaultMetaLevelReasoner. retrydelay   xs:long      0      documentation  With the retrydelay the delay between the failure of one plan and the execution of the next plan can be specified in milliseconds. exclude   xs:string      when_tried      documentation  The exclude flag can be specified when a plan will be excluded from the applicable plan list. The default is when_tried, which means that a candidate is excluded independently of its state when executed one time for a goal. Other options are when_succeeded, when_failed and never. posttoall   xs:boolean      false      documentation  When post-to-all is set to true (default is false), a goal is dispatched to all candidates of the applicable plan list at once. This process will only happen one time regardless of the retry settings. A post-to-all goal has implicit or semantics meaning that if one plan achieves the goal all others will be terminated.
annotation	documentation  A query goal is a goal for retrieving information. It has the implicit target consition that some result must be obtained for being succesfully achieved.

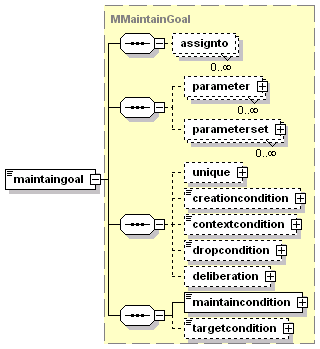

element MGoalbase/maintaingoal

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MMaintainGoal
children	assignto parameter parameterset unique creationcondition contextcondition dropcondition deliberation maintaincondition targetcondition
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. retry   xs:boolean      true      documentation  The retry flag can be used to determine the behaviour on plan failures. If retry is turned on (by default it is on) and a plan fails to achieve the considered goal another plan from the applicables plan list will be chosen for execution. metalevelreasoning   xs:boolean      true      documentation  The meta-level reasoning flag can be used to determine the behaviour when more than plan is applicable for a given goal. If meta-level reasoning is turned on (by default it is on) and more than one plan are applicable, meta-level reasoning is used to select among the different plan candidates. If turned on, a meta-goal will be searched and used to select among the candidates. If turned off, a simple ranking is build depending on the priority of the candidate. To further distinguish between candidates with the same priority the rank is used (plan instance -> plan -> plan waitqueue). If also the rank is equal the declaration order of plans n the ADF is used for the selection. randomselection   xs:boolean      false      documentation  Random selection can be used to choose among applicable plans for a given goal randomly. If used this flag makes the order of plan declaration within the ADF unimportantly, i.e. only random selection is only applied to plans of the same priority and rank (cf. mlreasoning comment). The mechanism is implemented in the jadex.impl.DefaultMetaLevelReasoner. retrydelay   xs:long      0      documentation  With the retrydelay the delay between the failure of one plan and the execution of the next plan can be specified in milliseconds. exclude   xs:string      when_tried      documentation  The exclude flag can be specified when a plan will be excluded from the applicable plan list. The default is when_tried, which means that a candidate is excluded independently of its state when executed one time for a goal. Other options are when_succeeded, when_failed and never. posttoall   xs:boolean      false      documentation  When post-to-all is set to true (default is false), a goal is dispatched to all candidates of the applicable plan list at once. This process will only happen one time regardless of the retry settings. A post-to-all goal has implicit or semantics meaning that if one plan achieves the goal all others will be terminated. recur   xs:boolean      false      documentation  The recur flag. If turned on (default is false) a maintain goal tries to reestablish the maintain state when it is unmaintainable or unknown. recurdelay   xs:long      0      documentation  Can be used to specify the timeframe between goal failure (could not reestablish the maintain state) and a new try.
annotation	documentation  A maintain goal is a goal for maintaing some target state. Whenever this state gets violated plans are executed for the goal until the state is reestablished.

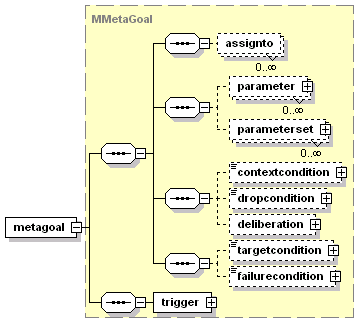

element MGoalbase/metagoal

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MMetaGoal
children	assignto parameter parameterset contextcondition dropcondition deliberation targetcondition failurecondition trigger
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. retry   xs:boolean      true      documentation  The retry flag can be used to determine the behaviour on plan failures. If retry is turned on (by default it is on) and a plan fails to achieve the considered goal another plan from the applicables plan list will be chosen for execution. metalevelreasoning   xs:boolean      true      documentation  The meta-level reasoning flag can be used to determine the behaviour when more than plan is applicable for a given goal. If meta-level reasoning is turned on (by default it is on) and more than one plan are applicable, meta-level reasoning is used to select among the different plan candidates. If turned on, a meta-goal will be searched and used to select among the candidates. If turned off, a simple ranking is build depending on the priority of the candidate. To further distinguish between candidates with the same priority the rank is used (plan instance -> plan -> plan waitqueue). If also the rank is equal the declaration order of plans n the ADF is used for the selection. randomselection   xs:boolean      false      documentation  Random selection can be used to choose among applicable plans for a given goal randomly. If used this flag makes the order of plan declaration within the ADF unimportantly, i.e. only random selection is only applied to plans of the same priority and rank (cf. mlreasoning comment). The mechanism is implemented in the jadex.impl.DefaultMetaLevelReasoner. retrydelay   xs:long      0      documentation  With the retrydelay the delay between the failure of one plan and the execution of the next plan can be specified in milliseconds. exclude   xs:string      when_tried      documentation  The exclude flag can be specified when a plan will be excluded from the applicable plan list. The default is when_tried, which means that a candidate is excluded independently of its state when executed one time for a goal. Other options are when_succeeded, when_failed and never. posttoall   xs:boolean      false      documentation  When post-to-all is set to true (default is false), a goal is dispatched to all candidates of the applicable plan list at once. This process will only happen one time regardless of the retry settings. A post-to-all goal has implicit or semantics meaning that if one plan achieves the goal all others will be terminated.
annotation	documentation  A meta goal can be used for meta-level reasoning. Trigger of a meta-goal is another goal or event.

element MGoalbase/performgoalref

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MPerformGoalReference
children	assignto concrete abstract parameterref parametersetref deliberation
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  A concrete reference to a performgoal(ref) in another capability (concrete) or an abstract goal that needs assigment from the using capability.

element MGoalbase/achievegoalref

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MAchieveGoalReference
children	assignto concrete abstract parameterref parametersetref deliberation
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  A concrete reference to an achievegoal(ref) in another capability (concrete) or an abstract goal that needs assigment from the using capability.

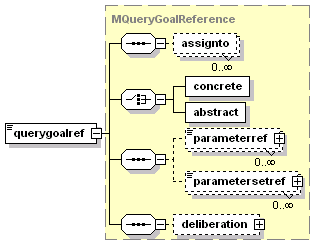

element MGoalbase/querygoalref

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MQueryGoalReference
children	assignto concrete abstract parameterref parametersetref deliberation
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  A concrete reference to a querygoal(ref) in another capability (concrete) or an abstract goal that needs assigment from the using capability.

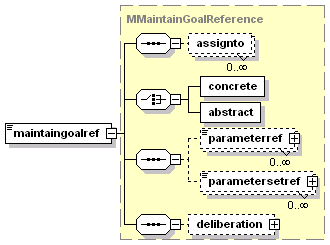

element MGoalbase/maintaingoalref

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MMaintainGoalReference
children	assignto concrete abstract parameterref parametersetref deliberation
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  A concrete reference to a maintaingoal(ref) in another capability (concrete) or an abstract goal that needs assigment from the using capability.

element MGoalbase/metagoalref

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MMetaGoalReference
children	assignto concrete abstract parameterref parametersetref deliberation
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  A concrete reference to a metagoal(ref) in another capability (concrete) or an abstract goal that needs assigment from the using capability.

complexType MGoalEvent

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MEvent
children	assignto parameter parameterset
used by	element  MEventbase/goalevent
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. posttoall   xs:boolean   optional         documentation  When post-to-all is set to true (default is true only for internal events), an event is dispatched to all candidates of the applicable plan list at once. metalevelreasoning   xs:boolean   optional         documentation  The meta-level reasoning flag can be used to determine the behaviour when more than plan is applicable for a given event. If meta-level reasoning is turned on (by default it is on) and more than one plan are applicable, meta-level reasoning is used to select among the different plan candidates. If turned on, a meta-goal will be searched and used to select among the candidates. If turned off, a simple ranking is build depending on the priority of the candidate. To further distinguish between candidates with the same priority the rank is used (plan instance -> plan -> plan waitqueue). If also the rank is equal the declaration order of plans n the ADF is used for the selection. randomselection   xs:boolean   optional         documentation  Random selection can be used to choose among applicable plans for a given goal randomly. If used this flag makes the order of plan declaration within the ADF unimportantly, i.e. only random selection is only applied to plans of the same priority and rank (cf. mlreasoning comment). The mechanism is implemented in the jadex.impl.DefaultMetaLevelReasoner.
annotation	documentation  Base type for goal events.

complexType MGoalEventReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MEventReference
children	assignto concrete abstract parameterref parametersetref
used by	element  MEventbase/goaleventref
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  Reference to a goal event.

complexType MGoalReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MParameterElementReference
children	assignto concrete abstract parameterref parametersetref deliberation
used by	complexTypes  MAchieveGoalReference MMaintainGoalReference MMetaGoalReference MPerformGoalReference MQueryGoalReference
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  Reference to a goal.

element MGoalReference/deliberation

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MDeliberation
children	inhibits
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. cardinality   xs:int   optional   -1      documentation  The cardinality specifies how many active goal instances of the given type can exist. The default is -1 meaning that a unlimited number of goals are permitted being active.

complexType MInhibits

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MInternalExpression
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
used by	element  MDeliberation/inhibits
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. evaluationmode   xs:string   optional         documentation  The evaluation mode determines if an expression is dynamic or static. If declared static it is only evaluated once (on creation). class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited         ref   xs:string   required         documentation  The name of the goal to inhibit. inhibit   xs:string   optional   when_active      documentation  In which state other goals should be inhibited. The default is when_active. For maintain this should normally be changed to when_in_process as maintain goals are homeostatic and active longer than other goal types.
annotation	documentation  Easy deliberation settings for goals (inhibitions). For an inhibition with the ref attribute the name of the inhibited goal can be specified. With the inhibit attribute it can optinally also specified in which state the goal has to be to inhibit the other.

complexType MInitialBase

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MElement
used by	complexTypes  MInitialBeliefbase MInitialCapabilitybase MInitialEventbase MInitialGoalbase MInitialPlanbase MInitialStatebase
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Base type for initial bases.

complexType MInitialBelief

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MInitialReferenceableElement
children	fact
used by	element  MInitialBeliefbase/initialbelief
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced model element.
annotation	documentation  A belief that is initialized with a defined value on capability or agent creation.

element MInitialBelief/fact

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalExpression
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. evaluationmode   xs:string   optional         documentation  The evaluation mode determines if an expression is dynamic or static. If declared static it is only evaluated once (on creation). class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited
annotation	documentation  An expression that is once evaluated to the initial belief value.

complexType MInitialBeliefbase

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MInitialBase
children	initialbelief initialbeliefset
used by	element  MInitialState/beliefs
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Container for initial beliefs.

element MInitialBeliefbase/initialbelief

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInitialBelief
children	fact
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced model element.
annotation	documentation  Any number of initially customized beliefs.

element MInitialBeliefbase/initialbeliefset

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInitialBeliefSet
children	fact facts
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced model element.
annotation	documentation  Any number of initially customized belief sets.

complexType MInitialBeliefSet

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MInitialReferenceableElement
children	fact facts
used by	element  MInitialBeliefbase/initialbeliefset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced model element.
annotation	documentation  A belief that is initialized with defined values on capability or agent creation.

element MInitialBeliefSet/fact

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MStaticValue
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited         evaluationmode      prohibited
annotation	documentation  An expression that is once evaluated to the initial belief value.

element MInitialBeliefSet/facts

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalExpression
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. evaluationmode   xs:string   optional         documentation  The evaluation mode determines if an expression is dynamic or static. If declared static it is only evaluated once (on creation). class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited
annotation	documentation  An expression that is once evaluated to the initial belief set values.

complexType MInitialCapability

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MInitialReferenceableElement
used by	element  MInitialCapabilitybase/initialcapability
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced model element. initialstate   xs:string   required         documentation  The name of the initialstate that should be used for the initial capability.
annotation	documentation  A capability that is initialized with a defined configuration on capability or agent creation.

complexType MInitialCapabilitybase

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MInitialBase
children	initialcapability
used by	element  MInitialState/capabilities
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Container for initial capabilitiers.

element MInitialCapabilitybase/initialcapability

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInitialCapability
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced model element. initialstate   xs:string   required         documentation  The name of the initialstate that should be used for the initial capability.
annotation	documentation  Any number of initially set up capabilities. Note that they have to reference a declared capability and can only change their initialstate.

complexType MInitialElement

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MElement
used by	complexType  MInitialReferenceableElement
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Base type for initial elements.

complexType MInitialEventbase

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MInitialBase
children	initialinternalevent initialmessageevent
used by	element  MInitialState/events
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Container for initial events.

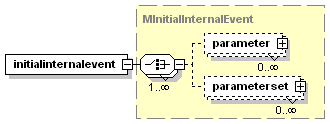

element MInitialEventbase/initialinternalevent

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInitialInternalEvent
children	parameter parameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced model element.
annotation	documentation  Any number of initially created internal events.

element MInitialEventbase/initialmessageevent

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInitialMessageEvent
children	parameter parameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced model element.
annotation	documentation  Any number of initially created message events.

complexType MInitialGoal

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MInitialParameterElement
children	parameter parameterset
used by	element  MInitialGoalbase/initialgoal
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced model element.
annotation	documentation  A goal that is created on capability or agent creation.

complexType MInitialGoalbase

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MInitialBase
children	initialgoal
used by	element  MInitialState/goals
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Container for initial goals.

element MInitialGoalbase/initialgoal

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInitialGoal
children	parameter parameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced model element.
annotation	documentation  Any number of initially created goals.

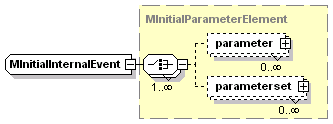

complexType MInitialInternalEvent

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MInitialParameterElement
children	parameter parameterset
used by	element  MInitialEventbase/initialinternalevent
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced model element.
annotation	documentation  An internal event that is created on capability or agent creation.

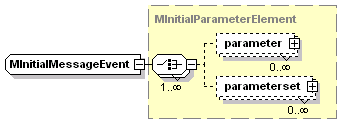

complexType MInitialMessageEvent

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MInitialParameterElement
children	parameter parameterset
used by	element  MInitialEventbase/initialmessageevent
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced model element.
annotation	documentation  A message event that is created on capability or agent creation.

complexType MInitialParameter

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MInitialReferenceableElement
children	value
used by	element  MInitialParameterElement/parameter
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced model element.
annotation	documentation  An initial parameter hold an initial value for a parameter.

element MInitialParameter/value

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalExpression
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. evaluationmode   xs:string   optional         documentation  The evaluation mode determines if an expression is dynamic or static. If declared static it is only evaluated once (on creation). class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited
annotation	documentation  An expression that resolves to a single value.

complexType MInitialParameterElement

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MInitialReferenceableElement
children	parameter parameterset
used by	complexTypes  MInitialGoal MInitialInternalEvent MInitialMessageEvent MInitialPlan
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced model element.
annotation	documentation  Base type for initial parameter elements.

element MInitialParameterElement/parameter

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInitialParameter
children	value
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced model element.
annotation	documentation  An expression that is once evaluated to the initial parameter value.

element MInitialParameterElement/parameterset

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInitialParameterSet
children	value values
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced model element.
annotation	documentation  An expression that is once evaluated to the initial parameter set values.

complexType MInitialParameterSet

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MInitialReferenceableElement
children	value values
used by	element  MInitialParameterElement/parameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced model element.
annotation	documentation  An initial parameter hold an initial value for a parameter set.

element MInitialParameterSet/value

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MStaticValue
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited         evaluationmode      prohibited
annotation	documentation  An expression that evaluates to a single value.

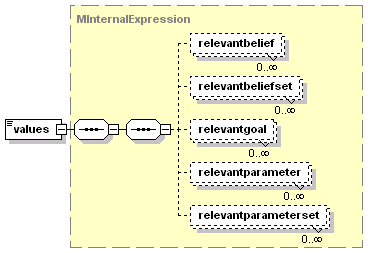

element MInitialParameterSet/values

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalExpression
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. evaluationmode   xs:string   optional         documentation  The evaluation mode determines if an expression is dynamic or static. If declared static it is only evaluated once (on creation). class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited
annotation	documentation  An expression that resolves to a set of values. Supported are iterators, enumerations, java.util.Collections, java.util.Maps, arrays.

complexType MInitialPlan

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MInitialParameterElement
children	parameter parameterset
used by	element  MInitialPlanbase/initialplan
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced model element.
annotation	documentation  A plan that is created on capability or agent creation.

complexType MInitialPlanbase

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MInitialBase
children	initialplan
used by	element  MInitialState/plans
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Container for initial plans.

element MInitialPlanbase/initialplan

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInitialPlan
children	parameter parameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced model element.
annotation	documentation  Any number of initially created plans.

complexType MInitialReferenceableElement

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MInitialElement
used by	complexTypes  MInitialBelief MInitialBeliefSet MInitialCapability MInitialParameter MInitialParameterElement MInitialParameterSet
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced model element.
annotation	documentation  Base type for initial referenceable elements.

complexType MInitialState

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MElement
children	capabilities beliefs goals plans events
used by	element  MInitialStatebase/initialstate
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Defines initial states for capabilities and agents.

element MInitialState/capabilities

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInitialCapabilitybase
children	initialcapability
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Any number of initially customized capabilities.

element MInitialState/beliefs

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInitialBeliefbase
children	initialbelief initialbeliefset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Any number of initially customized beliefs.

element MInitialState/goals

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInitialGoalbase
children	initialgoal
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Any number of initially created goals.

element MInitialState/plans

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInitialPlanbase
children	initialplan
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Any number of initially created plans.

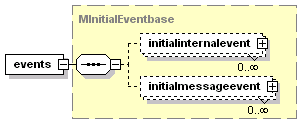

element MInitialState/events

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInitialEventbase
children	initialinternalevent initialmessageevent
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Any number of initially created events.

complexType MInitialStatebase

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MInitialBase
children	initialstate
used by	element  MCapability/initialstates
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. default   xs:string   optional         documentation  The default initial state name. Will be used to choose the initial state among multiple initial state definitions. If no default is explicitly stated, the first will be selected.
annotation	documentation  Container for initial states.

element MInitialStatebase/initialstate

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInitialState
children	capabilities beliefs goals plans events
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Any number of initial states.

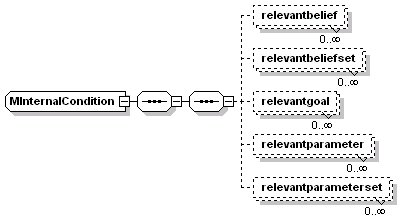

complexType MInternalCondition

diagram
namespace	http://jadex.sourceforge.net/jadex
type	restriction of MCondition
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
used by	elements  MGoal/contextcondition MMetaGoalDummy/contextcondition MPlan/contextcondition MGoal/dropcondition MMetaGoalDummy/dropcondition MAchieveGoal/failurecondition MQueryGoal/failurecondition MMetaGoalDummy/failurecondition MMaintainGoal/maintaincondition MAchieveGoal/targetcondition MQueryGoal/targetcondition MMaintainGoal/targetcondition MMetaGoalDummy/targetcondition complexType  MBindingCondition
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   prohibited   false      evaluationmode   xs:string   prohibited         class   xs:string   prohibited         trigger   xs:string   prohibited
annotation	documentation  For conditions that are not conatined in the expressionbase. Cannot be exported.

element MInternalCondition/relevantbelief

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MRelevantElement
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. eventtype   xs:string   optional         documentation  The eventtype that is of interest for the expression/condition that specifies the relevant element. ref   xs:string   required         documentation  The name of the referenced element that is relevant for the expression/condition that specifies the relevant element.
annotation	documentation  Any number of beliefs that should cause a re-evaluation of this expression.

element MInternalCondition/relevantbeliefset

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MRelevantElement
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. eventtype   xs:string   optional         documentation  The eventtype that is of interest for the expression/condition that specifies the relevant element. ref   xs:string   required         documentation  The name of the referenced element that is relevant for the expression/condition that specifies the relevant element.
annotation	documentation  Any number of belief sets that should cause a re-evaluation of this expression.

element MInternalCondition/relevantgoal

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MRelevantElement
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. eventtype   xs:string   optional         documentation  The eventtype that is of interest for the expression/condition that specifies the relevant element. ref   xs:string   required         documentation  The name of the referenced element that is relevant for the expression/condition that specifies the relevant element.
annotation	documentation  Any number of goals that should cause a re-evaluation of this expression.

element MInternalCondition/relevantparameter

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MRelevantElement
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. eventtype   xs:string   optional         documentation  The eventtype that is of interest for the expression/condition that specifies the relevant element. ref   xs:string   required         documentation  The name of the referenced element that is relevant for the expression/condition that specifies the relevant element.
annotation	documentation  Any number of parameters that should cause a re-evaluation of this expression.

element MInternalCondition/relevantparameterset

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MRelevantElement
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. eventtype   xs:string   optional         documentation  The eventtype that is of interest for the expression/condition that specifies the relevant element. ref   xs:string   required         documentation  The name of the referenced element that is relevant for the expression/condition that specifies the relevant element.
annotation	documentation  Any number of parameter sets that should cause a re-evaluation of this expression.

complexType MInternalEvent

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MEvent
children	assignto parameter parameterset
used by	element  MEventbase/internalevent
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. posttoall   xs:boolean   optional         documentation  When post-to-all is set to true (default is true only for internal events), an event is dispatched to all candidates of the applicable plan list at once. metalevelreasoning   xs:boolean   optional         documentation  The meta-level reasoning flag can be used to determine the behaviour when more than plan is applicable for a given event. If meta-level reasoning is turned on (by default it is on) and more than one plan are applicable, meta-level reasoning is used to select among the different plan candidates. If turned on, a meta-goal will be searched and used to select among the candidates. If turned off, a simple ranking is build depending on the priority of the candidate. To further distinguish between candidates with the same priority the rank is used (plan instance -> plan -> plan waitqueue). If also the rank is equal the declaration order of plans n the ADF is used for the selection. randomselection   xs:boolean   optional         documentation  Random selection can be used to choose among applicable plans for a given goal randomly. If used this flag makes the order of plan declaration within the ADF unimportantly, i.e. only random selection is only applied to plans of the same priority and rank (cf. mlreasoning comment). The mechanism is implemented in the jadex.impl.DefaultMetaLevelReasoner.
annotation	documentation  An internal event is used for agent internal event notification.

complexType MInternalEventReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MEventReference
children	assignto concrete abstract parameterref parametersetref
used by	element  MEventbase/internaleventref
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  Reference to an internal event.

complexType MInternalExpression

diagram
namespace	http://jadex.sourceforge.net/jadex
type	restriction of MExpression
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
used by	elements  MParameter/bindingoptions MPlanParameter/bindingoptions MBelief/fact MInitialBelief/fact MBeliefSet/facts MInitialBeliefSet/facts MParameter/value MPlanParameter/value MInitialParameter/value MParameterSet/values MPlanParameterSet/values MInitialParameterSet/values complexTypes  MInhibits MStaticValue
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   prohibited   false      evaluationmode   xs:string   optional         documentation  The evaluation mode determines if an expression is dynamic or static. If declared static it is only evaluated once (on creation). class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result.
annotation	documentation  For expressions that are not conatined in the expressionbase. Cannot be exported.

element MInternalExpression/relevantbelief

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MRelevantElement
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. eventtype   xs:string   optional         documentation  The eventtype that is of interest for the expression/condition that specifies the relevant element. ref   xs:string   required         documentation  The name of the referenced element that is relevant for the expression/condition that specifies the relevant element.
annotation	documentation  Any number of beliefs that should cause a re-evaluation of this expression.

element MInternalExpression/relevantbeliefset

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MRelevantElement
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. eventtype   xs:string   optional         documentation  The eventtype that is of interest for the expression/condition that specifies the relevant element. ref   xs:string   required         documentation  The name of the referenced element that is relevant for the expression/condition that specifies the relevant element.
annotation	documentation  Any number of belief sets that should cause a re-evaluation of this expression.

element MInternalExpression/relevantgoal

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MRelevantElement
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. eventtype   xs:string   optional         documentation  The eventtype that is of interest for the expression/condition that specifies the relevant element. ref   xs:string   required         documentation  The name of the referenced element that is relevant for the expression/condition that specifies the relevant element.
annotation	documentation  Any number of goals that should cause a re-evaluation of this expression.

element MInternalExpression/relevantparameter

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MRelevantElement
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. eventtype   xs:string   optional         documentation  The eventtype that is of interest for the expression/condition that specifies the relevant element. ref   xs:string   required         documentation  The name of the referenced element that is relevant for the expression/condition that specifies the relevant element.
annotation	documentation  Any number of parameters that should cause a re-evaluation of this expression.

element MInternalExpression/relevantparameterset

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MRelevantElement
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. eventtype   xs:string   optional         documentation  The eventtype that is of interest for the expression/condition that specifies the relevant element. ref   xs:string   required         documentation  The name of the referenced element that is relevant for the expression/condition that specifies the relevant element.
annotation	documentation  Any number of parameter sets that should cause a re-evaluation of this expression.

complexType MMaintainGoal

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MGoal
children	assignto parameter parameterset unique creationcondition contextcondition dropcondition deliberation maintaincondition targetcondition
used by	element  MGoalbase/maintaingoal
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. retry   xs:boolean      true      documentation  The retry flag can be used to determine the behaviour on plan failures. If retry is turned on (by default it is on) and a plan fails to achieve the considered goal another plan from the applicables plan list will be chosen for execution. metalevelreasoning   xs:boolean      true      documentation  The meta-level reasoning flag can be used to determine the behaviour when more than plan is applicable for a given goal. If meta-level reasoning is turned on (by default it is on) and more than one plan are applicable, meta-level reasoning is used to select among the different plan candidates. If turned on, a meta-goal will be searched and used to select among the candidates. If turned off, a simple ranking is build depending on the priority of the candidate. To further distinguish between candidates with the same priority the rank is used (plan instance -> plan -> plan waitqueue). If also the rank is equal the declaration order of plans n the ADF is used for the selection. randomselection   xs:boolean      false      documentation  Random selection can be used to choose among applicable plans for a given goal randomly. If used this flag makes the order of plan declaration within the ADF unimportantly, i.e. only random selection is only applied to plans of the same priority and rank (cf. mlreasoning comment). The mechanism is implemented in the jadex.impl.DefaultMetaLevelReasoner. retrydelay   xs:long      0      documentation  With the retrydelay the delay between the failure of one plan and the execution of the next plan can be specified in milliseconds. exclude   xs:string      when_tried      documentation  The exclude flag can be specified when a plan will be excluded from the applicable plan list. The default is when_tried, which means that a candidate is excluded independently of its state when executed one time for a goal. Other options are when_succeeded, when_failed and never. posttoall   xs:boolean      false      documentation  When post-to-all is set to true (default is false), a goal is dispatched to all candidates of the applicable plan list at once. This process will only happen one time regardless of the retry settings. A post-to-all goal has implicit or semantics meaning that if one plan achieves the goal all others will be terminated. recur   xs:boolean      false      documentation  The recur flag. If turned on (default is false) a maintain goal tries to reestablish the maintain state when it is unmaintainable or unknown. recurdelay   xs:long      0      documentation  Can be used to specify the timeframe between goal failure (could not reestablish the maintain state) and a new try.
annotation	documentation  A maintain goal aims at preserving a certain state.

element MMaintainGoal/maintaincondition

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalCondition
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported      prohibited         evaluationmode      prohibited         class      prohibited         trigger      prohibited
annotation	documentation  The mandatory maintain condition represents a world state that should be monitored and re-established whenever it gets violated.

element MMaintainGoal/targetcondition

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalCondition
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported      prohibited         evaluationmode      prohibited         class      prohibited         trigger      prohibited
annotation	documentation  A specalisation of the maintain condition taht should be re-established when the maintain condition is violated.

complexType MMaintainGoalReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MGoalReference
children	assignto concrete abstract parameterref parametersetref deliberation
used by	element  MGoalbase/maintaingoalref
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  Reference to a maintain goal.

complexType MMessageEvent

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MEvent
children	assignto parameter parameterset
used by	element  MEventbase/messageevent
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. posttoall   xs:boolean   optional         documentation  When post-to-all is set to true (default is true only for internal events), an event is dispatched to all candidates of the applicable plan list at once. metalevelreasoning   xs:boolean   optional         documentation  The meta-level reasoning flag can be used to determine the behaviour when more than plan is applicable for a given event. If meta-level reasoning is turned on (by default it is on) and more than one plan are applicable, meta-level reasoning is used to select among the different plan candidates. If turned on, a meta-goal will be searched and used to select among the candidates. If turned off, a simple ranking is build depending on the priority of the candidate. To further distinguish between candidates with the same priority the rank is used (plan instance -> plan -> plan waitqueue). If also the rank is equal the declaration order of plans n the ADF is used for the selection. randomselection   xs:boolean   optional         documentation  Random selection can be used to choose among applicable plans for a given goal randomly. If used this flag makes the order of plan declaration within the ADF unimportantly, i.e. only random selection is only applied to plans of the same priority and rank (cf. mlreasoning comment). The mechanism is implemented in the jadex.impl.DefaultMetaLevelReasoner. direction   xs:string   optional   send_receive      documentation  Specifies the direction of the message. Possible values are send, receive and send_receive. type   xs:string   required         documentation  The message type defines the predefined names and types of parameters. Possible values are fipa.
annotation	documentation  A message event is used for inter-agent communication.

complexType MMessageEventReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MEventReference
children	assignto concrete abstract parameterref parametersetref
used by	element  MEventbase/messageeventref
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  Reference to a message event.

complexType MMetaGoal

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MMetaGoalDummy
children	assignto parameter parameterset contextcondition dropcondition deliberation targetcondition failurecondition trigger
used by	element  MGoalbase/metagoal
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. retry   xs:boolean      true      documentation  The retry flag can be used to determine the behaviour on plan failures. If retry is turned on (by default it is on) and a plan fails to achieve the considered goal another plan from the applicables plan list will be chosen for execution. metalevelreasoning   xs:boolean      true      documentation  The meta-level reasoning flag can be used to determine the behaviour when more than plan is applicable for a given goal. If meta-level reasoning is turned on (by default it is on) and more than one plan are applicable, meta-level reasoning is used to select among the different plan candidates. If turned on, a meta-goal will be searched and used to select among the candidates. If turned off, a simple ranking is build depending on the priority of the candidate. To further distinguish between candidates with the same priority the rank is used (plan instance -> plan -> plan waitqueue). If also the rank is equal the declaration order of plans n the ADF is used for the selection. randomselection   xs:boolean      false      documentation  Random selection can be used to choose among applicable plans for a given goal randomly. If used this flag makes the order of plan declaration within the ADF unimportantly, i.e. only random selection is only applied to plans of the same priority and rank (cf. mlreasoning comment). The mechanism is implemented in the jadex.impl.DefaultMetaLevelReasoner. retrydelay   xs:long      0      documentation  With the retrydelay the delay between the failure of one plan and the execution of the next plan can be specified in milliseconds. exclude   xs:string      when_tried      documentation  The exclude flag can be specified when a plan will be excluded from the applicable plan list. The default is when_tried, which means that a candidate is excluded independently of its state when executed one time for a goal. Other options are when_succeeded, when_failed and never. posttoall   xs:boolean      false      documentation  When post-to-all is set to true (default is false), a goal is dispatched to all candidates of the applicable plan list at once. This process will only happen one time regardless of the retry settings. A post-to-all goal has implicit or semantics meaning that if one plan achieves the goal all others will be terminated.
annotation	documentation  A meta goal can be used for meta-level reasoning.

element MMetaGoal/trigger

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MTrigger
children	internalevent messageevent goal filter
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  The trigger for specifying for what kinds of events this meta goal should be used.

complexType MMetaGoalDummy

diagram
namespace	http://jadex.sourceforge.net/jadex
type	restriction of MQueryGoal
children	assignto parameter parameterset contextcondition dropcondition deliberation targetcondition failurecondition
used by	complexType  MMetaGoal
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. retry   xs:boolean      true      documentation  The retry flag can be used to determine the behaviour on plan failures. If retry is turned on (by default it is on) and a plan fails to achieve the considered goal another plan from the applicables plan list will be chosen for execution. metalevelreasoning   xs:boolean      true      documentation  The meta-level reasoning flag can be used to determine the behaviour when more than plan is applicable for a given goal. If meta-level reasoning is turned on (by default it is on) and more than one plan are applicable, meta-level reasoning is used to select among the different plan candidates. If turned on, a meta-goal will be searched and used to select among the candidates. If turned off, a simple ranking is build depending on the priority of the candidate. To further distinguish between candidates with the same priority the rank is used (plan instance -> plan -> plan waitqueue). If also the rank is equal the declaration order of plans n the ADF is used for the selection. randomselection   xs:boolean      false      documentation  Random selection can be used to choose among applicable plans for a given goal randomly. If used this flag makes the order of plan declaration within the ADF unimportantly, i.e. only random selection is only applied to plans of the same priority and rank (cf. mlreasoning comment). The mechanism is implemented in the jadex.impl.DefaultMetaLevelReasoner. retrydelay   xs:long      0      documentation  With the retrydelay the delay between the failure of one plan and the execution of the next plan can be specified in milliseconds. exclude   xs:string      when_tried      documentation  The exclude flag can be specified when a plan will be excluded from the applicable plan list. The default is when_tried, which means that a candidate is excluded independently of its state when executed one time for a goal. Other options are when_succeeded, when_failed and never. posttoall   xs:boolean      false      documentation  When post-to-all is set to true (default is false), a goal is dispatched to all candidates of the applicable plan list at once. This process will only happen one time regardless of the retry settings. A post-to-all goal has implicit or semantics meaning that if one plan achieves the goal all others will be terminated.
annotation	documentation  Used only internally.

element MMetaGoalDummy/assignto

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MAssign
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element.
annotation	documentation  Assign this element to an abstract element of another capability.

element MMetaGoalDummy/parameter

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MParameter
children	assignto value bindingoptions
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string   required         documentation  The required Java class of the fact. Used for type checking objects that are asserted as facts. updaterate   xs:long   optional   0      documentation  For dynamic expressions the update rate defines in what intervals the fact will be re-evaluated. The default update rate is set to 0. transient   xs:boolean   optional   false      documentation  Transient beliefs or prameter values are not retained, when persisting or migrating an agent. This is useful e.g. when a value class is not serializable. optional   xs:boolean   optional   false      documentation  If a parameter is declared optional (default is false), it need not to have a value (can null). direction   xs:string   optional   in      documentation  The direction can be used to explicitly declare e.g. result parameters (out ) or parameters that are both (inout). Per default parameters are in.
annotation	documentation  Any number of parameters.

element MMetaGoalDummy/parameterset

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MParameterSet
children	assignto value values
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string   required         documentation  The required Java class of the fact. Used for type checking objects that are asserted as facts. updaterate   xs:long   optional   0      documentation  For dynamic expressions the update rate defines in what intervals the fact will be re-evaluated. The default update rate is set to 0. transient   xs:boolean   optional   false      documentation  Transient beliefs or prameter values are not retained, when persisting or migrating an agent. This is useful e.g. when a value class is not serializable. optional   xs:boolean   optional   false      documentation  If a parameter is declared optional (default is false), it need not to have a value (can have 0 values). direction   xs:string   optional   in      documentation  The direction can be used to explicitly declare e.g. result parame ters (out) or parameters that are both (inout). Per default parameters are in.
annotation	documentation  Any number of parameter sets.

element MMetaGoalDummy/contextcondition

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalCondition
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported      prohibited         evaluationmode      prohibited         class      prohibited         trigger      prohibited
annotation	documentation  The context condition is checked during the whole execution time of a goal. If it becomes invalid the goal will become suspended and is not actively pursued until reactivation.

element MMetaGoalDummy/dropcondition

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalCondition
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported      prohibited         evaluationmode      prohibited         class      prohibited         trigger      prohibited
annotation	documentation  If the dropcondition triggers the goal instance is dropped.

element MMetaGoalDummy/deliberation

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MDeliberation
children	inhibits
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. cardinality   xs:int   optional   -1      documentation  The cardinality specifies how many active goal instances of the given type can exist. The default is -1 meaning that a unlimited number of goals are permitted being active.
annotation	documentation  The goal deliberation setting for the easy deliberation strategy.

element MMetaGoalDummy/targetcondition

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalCondition
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported      prohibited         evaluationmode      prohibited         class      prohibited         trigger      prohibited
annotation	documentation  A query goal has the implicit target condition that none of its out parameters may null.

element MMetaGoalDummy/failurecondition

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalCondition
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported      prohibited         evaluationmode      prohibited         class      prohibited         trigger      prohibited
annotation	documentation  Can be used to explicitly state when a goal cannot be pursued any longer and is failed.

complexType MMetaGoalReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MGoalReference
children	assignto concrete abstract parameterref parametersetref deliberation
used by	element  MGoalbase/metagoalref
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  Reference to a meta goal.

complexType MParameter

diagram
namespace	http://jadex.sourceforge.net/jadex
type	restriction of MPlanParameter
children	assignto value bindingoptions
used by	elements  MMetaGoalDummy/parameter MParameterElement/parameter
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string   required         documentation  The required Java class of the fact. Used for type checking objects that are asserted as facts. updaterate   xs:long   optional   0      documentation  For dynamic expressions the update rate defines in what intervals the fact will be re-evaluated. The default update rate is set to 0. transient   xs:boolean   optional   false      documentation  Transient beliefs or prameter values are not retained, when persisting or migrating an agent. This is useful e.g. when a value class is not serializable. optional   xs:boolean   optional   false      documentation  If a parameter is declared optional (default is false), it need not to have a value (can null). direction   xs:string   optional   in      documentation  The direction can be used to explicitly declare e.g. result parameters (out ) or parameters that are both (inout). Per default parameters are in.
annotation	documentation  A parameter represents a single-valued piece of information belonging to some parameter element.

element MParameter/assignto

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MAssign
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element.
annotation	documentation  Assign this element to an abstract element of another capability.

element MParameter/value

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalExpression
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. evaluationmode   xs:string   optional         documentation  The evaluation mode determines if an expression is dynamic or static. If declared static it is only evaluated once (on creation). class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited
annotation	documentation  An expression that represents the default value. Per default it is static, i.e. it is only evalued only once on creation.

element MParameter/bindingoptions

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalExpression
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. evaluationmode   xs:string   optional         documentation  The evaluation mode determines if an expression is dynamic or static. If declared static it is only evaluated once (on creation). class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited
annotation	documentation  From a set of binding option values one concrete is selected per instance.

complexType MParameterElement

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MReferenceableElement
children	assignto parameter parameterset
used by	complexTypes  MDummyPlan MEvent MGoal
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  Base type for elements that can have parameters and parameter sets.

element MParameterElement/parameter

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MParameter
children	assignto value bindingoptions
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string   required         documentation  The required Java class of the fact. Used for type checking objects that are asserted as facts. updaterate   xs:long   optional   0      documentation  For dynamic expressions the update rate defines in what intervals the fact will be re-evaluated. The default update rate is set to 0. transient   xs:boolean   optional   false      documentation  Transient beliefs or prameter values are not retained, when persisting or migrating an agent. This is useful e.g. when a value class is not serializable. optional   xs:boolean   optional   false      documentation  If a parameter is declared optional (default is false), it need not to have a value (can null). direction   xs:string   optional   in      documentation  The direction can be used to explicitly declare e.g. result parameters (out ) or parameters that are both (inout). Per default parameters are in.
annotation	documentation  Any number of parameters.

element MParameterElement/parameterset

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MParameterSet
children	assignto value values
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string   required         documentation  The required Java class of the fact. Used for type checking objects that are asserted as facts. updaterate   xs:long   optional   0      documentation  For dynamic expressions the update rate defines in what intervals the fact will be re-evaluated. The default update rate is set to 0. transient   xs:boolean   optional   false      documentation  Transient beliefs or prameter values are not retained, when persisting or migrating an agent. This is useful e.g. when a value class is not serializable. optional   xs:boolean   optional   false      documentation  If a parameter is declared optional (default is false), it need not to have a value (can have 0 values). direction   xs:string   optional   in      documentation  The direction can be used to explicitly declare e.g. result parame ters (out) or parameters that are both (inout). Per default parameters are in.
annotation	documentation  Any number of parameter set elements.

complexType MParameterElementReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MElementReference
children	assignto concrete abstract parameterref parametersetref
used by	complexTypes  MEventReference MGoalReference
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  Reference to a parameter element.

element MParameterElementReference/parameterref

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MParameterReference
children	assignto concrete abstract
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string            documentation  The class of the contained value. In the reference this value can be overridden to allow specializations for derived types.
annotation	documentation  Any number of parameter references.

element MParameterElementReference/parametersetref

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MParameterSetReference
children	assignto concrete abstract
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string            documentation  The class of the contained value. In the reference this value can be overridden to allow specializations for derived types.
annotation	documentation  Any number of parameter set references.

complexType MParameterReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MTypedElementReference
children	assignto concrete abstract
used by	element  MParameterElementReference/parameterref
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string            documentation  The class of the contained value. In the reference this value can be overridden to allow specializations for derived types.
annotation	documentation  Reference to a parameter.

complexType MParameterSet

diagram
namespace	http://jadex.sourceforge.net/jadex
type	restriction of MPlanParameterSet
children	assignto value values
used by	elements  MMetaGoalDummy/parameterset MParameterElement/parameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string   required         documentation  The required Java class of the fact. Used for type checking objects that are asserted as facts. updaterate   xs:long   optional   0      documentation  For dynamic expressions the update rate defines in what intervals the fact will be re-evaluated. The default update rate is set to 0. transient   xs:boolean   optional   false      documentation  Transient beliefs or prameter values are not retained, when persisting or migrating an agent. This is useful e.g. when a value class is not serializable. optional   xs:boolean   optional   false      documentation  If a parameter is declared optional (default is false), it need not to have a value (can have 0 values). direction   xs:string   optional   in      documentation  The direction can be used to explicitly declare e.g. result parame ters (out) or parameters that are both (inout). Per default parameters are in.
annotation	documentation  A parameter set represents a multi-valued piece of information belonging to some parameter element.

element MParameterSet/assignto

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MAssign
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element.
annotation	documentation  Assign this element to an abstract element of another capability.

element MParameterSet/value

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MStaticValue
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited         evaluationmode      prohibited
annotation	documentation  An expression that evaluated to a default value. Only static values are allowed, i.e. it is only evaluated once on creation.

element MParameterSet/values

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalExpression
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. evaluationmode   xs:string   optional         documentation  The evaluation mode determines if an expression is dynamic or static. If declared static it is only evaluated once (on creation). class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited
annotation	documentation  An expression that is evaluated to a set of default values. Per default it is static, i.e. it is only evalued only once on creation.

complexType MParameterSetReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MTypedElementSetReference
children	assignto concrete abstract
used by	element  MParameterElementReference/parametersetref
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string            documentation  The class of the contained value. In the reference this value can be overridden to allow specializations for derived types.
annotation	documentation  Reference to a parameter set.

complexType MPerformGoal

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MGoal
children	assignto parameter parameterset unique creationcondition contextcondition dropcondition deliberation
used by	element  MGoalbase/performgoal
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. retry   xs:boolean      true      documentation  The retry flag can be used to determine the behaviour on plan failures. If retry is turned on (by default it is on) and a plan fails to achieve the considered goal another plan from the applicables plan list will be chosen for execution. metalevelreasoning   xs:boolean      true      documentation  The meta-level reasoning flag can be used to determine the behaviour when more than plan is applicable for a given goal. If meta-level reasoning is turned on (by default it is on) and more than one plan are applicable, meta-level reasoning is used to select among the different plan candidates. If turned on, a meta-goal will be searched and used to select among the candidates. If turned off, a simple ranking is build depending on the priority of the candidate. To further distinguish between candidates with the same priority the rank is used (plan instance -> plan -> plan waitqueue). If also the rank is equal the declaration order of plans n the ADF is used for the selection. randomselection   xs:boolean      false      documentation  Random selection can be used to choose among applicable plans for a given goal randomly. If used this flag makes the order of plan declaration within the ADF unimportantly, i.e. only random selection is only applied to plans of the same priority and rank (cf. mlreasoning comment). The mechanism is implemented in the jadex.impl.DefaultMetaLevelReasoner. retrydelay   xs:long      0      documentation  With the retrydelay the delay between the failure of one plan and the execution of the next plan can be specified in milliseconds. exclude   xs:string      when_tried      documentation  The exclude flag can be specified when a plan will be excluded from the applicable plan list. The default is when_tried, which means that a candidate is excluded independently of its state when executed one time for a goal. Other options are when_succeeded, when_failed and never. posttoall   xs:boolean      false      documentation  When post-to-all is set to true (default is false), a goal is dispatched to all candidates of the applicable plan list at once. This process will only happen one time regardless of the retry settings. A post-to-all goal has implicit or semantics meaning that if one plan achieves the goal all others will be terminated.
annotation	documentation  A perform goal aims at executing actions.

complexType MPerformGoalReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MGoalReference
children	assignto concrete abstract parameterref parametersetref deliberation
used by	element  MGoalbase/performgoalref
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  Reference to a goal.

complexType MPlan

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MDummyPlan
children	assignto parameter parameterset body trigger precondition contextcondition waitqueue
used by	element  MPlanbase/plan
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. priority   xs:int   optional   0      documentation  The priority can be used for controlling the plan selection process (default priority is 0). Plans with higher priority have precedence for plans with lower priority.
annotation	documentation  A plan contains procedural knowledge. It consits of a plan head and a plan body.

element MPlan/parameter

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MPlanParameter
children	assignto value bindingoptions internaleventmapping messageeventmapping goalmapping
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string   required         documentation  The required Java class of the fact. Used for type checking objects that are asserted as facts. updaterate   xs:long   optional   0      documentation  For dynamic expressions the update rate defines in what intervals the fact will be re-evaluated. The default update rate is set to 0. transient   xs:boolean   optional   false      documentation  Transient beliefs or prameter values are not retained, when persisting or migrating an agent. This is useful e.g. when a value class is not serializable. optional   xs:boolean   optional   false      documentation  If a parameter is declared optional (default is false), it need not to have a value (can null). direction   xs:string   optional   in      documentation  The direction can be used to explicitly declare e.g. result parameters (out ) or parameters that are both (inout). Per default parameters are in.
annotation	documentation  An arbitrary number of plan parameters.

element MPlan/parameterset

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MPlanParameterSet
children	assignto value values internaleventmapping messageeventmapping goalmapping
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string   required         documentation  The required Java class of the fact. Used for type checking objects that are asserted as facts. updaterate   xs:long   optional   0      documentation  For dynamic expressions the update rate defines in what intervals the fact will be re-evaluated. The default update rate is set to 0. transient   xs:boolean   optional   false      documentation  Transient beliefs or prameter values are not retained, when persisting or migrating an agent. This is useful e.g. when a value class is not serializable. optional   xs:boolean   optional   false      documentation  If a parameter is declared optional (default is false), it need not to have a value (can have 0 values). direction   xs:string   optional   in      documentation  The direction can be used to explicitly declare e.g. result parame ters (out) or parameters that are both (inout). Per default parameters are in.
annotation	documentation  An arbitrary number of plan parameter sets.

element MPlan/body

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MPlanBody
children	passed failed aborted
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited         evaluationmode      prohibited         type   xs:string   optional   standard      documentation  The type of the plan body. Default is standard. If mobile agents (migration) is required mobile plans should be used. Mobile plan do not require their own thread. inline   xs:boolean   optional   false      documentation  Inline plans are completely defined within the ADF. This means that the body code (and optionally succeeded, failed, aborted code) is directly written into the ADF. This is very usable for small plans. Note, this feature is provided only when the Janino parser is used.
annotation	documentation  The plan body. If it is a normal plan the body is interpreted as an expression that must be evaluable to a plan object. If it is an inline plan the body (passed, failed, aborted) code is directly contained in this body specification.

element MPlan/trigger

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MPlanTrigger
children	internalevent messageevent goal filter condition beliefchange beliefsetchange factadded factremoved
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  The trigger is used to determine when a plan is applicable for a given event or goal.

element MPlan/precondition

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MStaticValue
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited         evaluationmode      prohibited
annotation	documentation  Only when the precondition holds a plan can be selected for execution. During the execution of the plan the precondition is not checked any more.

element MPlan/contextcondition

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalCondition
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported      prohibited         evaluationmode      prohibited         class      prohibited         trigger      prohibited
annotation	documentation  The context condition of a plan must be valid during the whole time of plan execution. If it becomes invalid the plan will immediately be aborted.

element MPlan/waitqueue

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MTrigger
children	internalevent messageevent goal filter
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  The waitque allows a plan instance to receive events even if it is currently running. With the waitqueue filter a plan instance can declare general interest in certain kinds of events.

complexType MPlanbase

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MBase
children	plan
used by	element  MCapability/plans
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Container for plans.

element MPlanbase/plan

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MPlan
children	assignto parameter parameterset body trigger precondition contextcondition waitqueue
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. priority   xs:int   optional   0      documentation  The priority can be used for controlling the plan selection process (default priority is 0). Plans with higher priority have precedence for plans with lower priority.
annotation	documentation  A plan contains procedural knowledge for achieving goals or handling events. A plan consists of a head and body part. The head specifies the conditions under which the plan is applicabe whereas the body contains the concrete actions to perform.

complexType MPlanBody

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MStaticValue
children	passed failed aborted
used by	element  MPlan/body
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited         evaluationmode      prohibited         type   xs:string   optional   standard      documentation  The type of the plan body. Default is standard. If mobile agents (migration) is required mobile plans should be used. Mobile plan do not require their own thread. inline   xs:boolean   optional   false      documentation  Inline plans are completely defined within the ADF. This means that the body code (and optionally succeeded, failed, aborted code) is directly written into the ADF. This is very usable for small plans. Note, this feature is provided only when the Janino parser is used.
annotation	documentation  The plan body contains the code (actions) to execute.

element MPlanBody/passed

diagram
namespace	http://jadex.sourceforge.net/jadex
type	xs:string
annotation	documentation  For inline plans only. The passed method code. This code is executed when a plan completes the body method without exception.

element MPlanBody/failed

diagram
namespace	http://jadex.sourceforge.net/jadex
type	xs:string
annotation	documentation  For inline plans only. The failed method code. This code is executed when an uncatched exeception occurs within the plan body.

element MPlanBody/aborted

diagram
namespace	http://jadex.sourceforge.net/jadex
type	xs:string
annotation	documentation  For inline plans only. The failed method code. This code is executed when a plan is aborted. It can either be aborted on succes, i.e. when the goal succeeds or on failure, i.e. when the goal fails.

complexType MPlanParameter

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MTypedElement
children	assignto value bindingoptions internaleventmapping messageeventmapping goalmapping
used by	element  MPlan/parameter complexType  MParameter
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string   required         documentation  The required Java class of the fact. Used for type checking objects that are asserted as facts. updaterate   xs:long   optional   0      documentation  For dynamic expressions the update rate defines in what intervals the fact will be re-evaluated. The default update rate is set to 0. transient   xs:boolean   optional   false      documentation  Transient beliefs or prameter values are not retained, when persisting or migrating an agent. This is useful e.g. when a value class is not serializable. optional   xs:boolean   optional   false      documentation  If a parameter is declared optional (default is false), it need not to have a value (can null). direction   xs:string   optional   in      documentation  The direction can be used to explicitly declare e.g. result parameters (out) or parameters that are both (inout). Per default parameters are in.
annotation	documentation  Parameter for a plan. Additionally allows mappings being defined.

element MPlanParameter/value

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalExpression
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. evaluationmode   xs:string   optional         documentation  The evaluation mode determines if an expression is dynamic or static. If declared static it is only evaluated once (on creation). class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited
annotation	documentation  An expression that is the default value.

element MPlanParameter/bindingoptions

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalExpression
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. evaluationmode   xs:string   optional         documentation  The evaluation mode determines if an expression is dynamic or static. If declared static it is only evaluated once (on creation). class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited
annotation	documentation  From a set of binding option values one concrete is selected per plan instance. If a plan with binding options is created for each possible binding value a new plan instance is created.

element MPlanParameter/internaleventmapping

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MAssign
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element.
annotation	documentation  This parameter is considered as a proxy. It is mapped to another parameter in an internal event.

element MPlanParameter/messageeventmapping

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MAssign
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element.
annotation	documentation  This parameter is considered as a proxy. It is mapped to another parameter in a message event.

element MPlanParameter/goalmapping

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MAssign
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element.
annotation	documentation  This parameter is considered as a proxy. It is mapped to another parameter in a goal.

complexType MPlanParameterSet

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MTypedElementSet
children	assignto value values internaleventmapping messageeventmapping goalmapping
used by	element  MPlan/parameterset complexType  MParameterSet
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string   required         documentation  The required Java class of the fact. Used for type checking objects that are asserted as facts. updaterate   xs:long   optional   0      documentation  For dynamic expressions the update rate defines in what intervals the fact will be re-evaluated. The default update rate is set to 0. transient   xs:boolean   optional   false      documentation  Transient beliefs or prameter values are not retained, when persisting or migrating an agent. This is useful e.g. when a value class is not serializable. optional   xs:boolean   optional   false      documentation  If a parameter is declared optional (default is false), it need not to have a value (can have 0 values). direction   xs:string   optional   in      documentation  The direction can be used to explicitly declare e.g. result parameters (out) or parameters that are both (inout). Per default parameters are in.
annotation	documentation  Parameter set for a plan. Additionally allows mappings being defined.

element MPlanParameterSet/value

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MStaticValue
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited         evaluationmode      prohibited

element MPlanParameterSet/values

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalExpression
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. evaluationmode   xs:string   optional         documentation  The evaluation mode determines if an expression is dynamic or static. If declared static it is only evaluated once (on creation). class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited

element MPlanParameterSet/internaleventmapping

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MAssign
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element.

element MPlanParameterSet/messageeventmapping

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MAssign
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element.

element MPlanParameterSet/goalmapping

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MAssign
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element.

complexType MPlanReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MElementReference
children	assignto concrete abstract
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  Reference to a plan. Not yet used.

complexType MPlanTrigger

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MTrigger
children	internalevent messageevent goal filter condition beliefchange beliefsetchange factadded factremoved
used by	element  MPlan/trigger
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  The trigger for plans also reacting on conditions, belief and belief set changes.

element MPlanTrigger/condition

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MBindingCondition
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported      prohibited         evaluationmode      prohibited         class      prohibited         trigger      prohibited

element MPlanTrigger/beliefchange

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MAssign
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element.

element MPlanTrigger/beliefsetchange

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MAssign
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element.

element MPlanTrigger/factadded

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MAssign
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element.

element MPlanTrigger/factremoved

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MAssign
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element.

complexType MPropertybase

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MBase
children	property
used by	elements  properties MCapability/properties
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Container for properties.

element MPropertybase/property

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MStaticValue
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited         evaluationmode      prohibited
annotation	documentation  A property can be used to specify a user defined value. It is interpreted as non-dynamic program code expression that is evaluted once on initialization.

complexType MQueryGoal

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MGoal
children	assignto parameter parameterset unique creationcondition contextcondition dropcondition deliberation targetcondition failurecondition
used by	element  MGoalbase/querygoal complexType  MMetaGoalDummy
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. retry   xs:boolean      true      documentation  The retry flag can be used to determine the behaviour on plan failures. If retry is turned on (by default it is on) and a plan fails to achieve the considered goal another plan from the applicables plan list will be chosen for execution. metalevelreasoning   xs:boolean      true      documentation  The meta-level reasoning flag can be used to determine the behaviour when more than plan is applicable for a given goal. If meta-level reasoning is turned on (by default it is on) and more than one plan are applicable, meta-level reasoning is used to select among the different plan candidates. If turned on, a meta-goal will be searched and used to select among the candidates. If turned off, a simple ranking is build depending on the priority of the candidate. To further distinguish between candidates with the same priority the rank is used (plan instance -> plan -> plan waitqueue). If also the rank is equal the declaration order of plans n the ADF is used for the selection. randomselection   xs:boolean      false      documentation  Random selection can be used to choose among applicable plans for a given goal randomly. If used this flag makes the order of plan declaration within the ADF unimportantly, i.e. only random selection is only applied to plans of the same priority and rank (cf. mlreasoning comment). The mechanism is implemented in the jadex.impl.DefaultMetaLevelReasoner. retrydelay   xs:long      0      documentation  With the retrydelay the delay between the failure of one plan and the execution of the next plan can be specified in milliseconds. exclude   xs:string      when_tried      documentation  The exclude flag can be specified when a plan will be excluded from the applicable plan list. The default is when_tried, which means that a candidate is excluded independently of its state when executed one time for a goal. Other options are when_succeeded, when_failed and never. posttoall   xs:boolean      false      documentation  When post-to-all is set to true (default is false), a goal is dispatched to all candidates of the applicable plan list at once. This process will only happen one time regardless of the retry settings. A post-to-all goal has implicit or semantics meaning that if one plan achieves the goal all others will be terminated.
annotation	documentation  A query goal aims at retrieving information.

element MQueryGoal/targetcondition

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalCondition
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported      prohibited         evaluationmode      prohibited         class      prohibited         trigger      prohibited
annotation	documentation  A query goal has the implicit target condition that none of its out parameters may null.

element MQueryGoal/failurecondition

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MInternalCondition
children	relevantbelief relevantbeliefset relevantgoal relevantparameter relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported      prohibited         evaluationmode      prohibited         class      prohibited         trigger      prohibited
annotation	documentation  Can be used to explicitly state when a goal cannot be pursued any longer and is failed.

complexType MQueryGoalReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MGoalReference
children	assignto concrete abstract parameterref parametersetref deliberation
used by	element  MGoalbase/querygoalref
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  Reference to a query goal.

complexType MReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MElement
children	parameter
used by	elements  MTrigger/goal MTrigger/internalevent MTrigger/messageevent
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element in the same capability.
annotation	documentation  Reference to another element. Used in trigger to match an event or goal.

element MReference/parameter

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MReferenceParameter
children	value
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element.
annotation	documentation  Any number of parameters that are matched against parameters of the event/goal.

complexType MReferenceableElement

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MElement
children	assignto
used by	complexTypes  MElementReference MExpression MParameterElement MTypedElement MTypedElementSet
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false.
annotation	documentation  Base type for elements contained in bases. Exported elements can be used in outer capabilities.

element MReferenceableElement/assignto

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MAssign
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element.
annotation	documentation  Assign this element to an abstract element of another capability.

complexType MReferenceParameter

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MElement
children	value
used by	element  MReference/parameter
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element.
annotation	documentation  A parameter value for a reference. Used in trigger to match a parameter value.

element MReferenceParameter/value

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MStaticValue
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited         evaluationmode      prohibited
annotation	documentation  The value is matched against the parameter value of the event/goal.

complexType MRelevantElement

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MElement
used by	elements  MExpression/relevantbelief MInternalExpression/relevantbelief MInternalCondition/relevantbelief MExpression/relevantbeliefset MInternalExpression/relevantbeliefset MInternalCondition/relevantbeliefset MExpression/relevantgoal MInternalExpression/relevantgoal MInternalCondition/relevantgoal MExpression/relevantparameter MInternalExpression/relevantparameter MInternalCondition/relevantparameter MExpression/relevantparameterset MInternalExpression/relevantparameterset MInternalCondition/relevantparameterset
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. eventtype   xs:string   optional         documentation  The eventtype that is of interest for the expression/condition that specifies the relevant element. ref   xs:string   required         documentation  The name of the referenced element that is relevant for the expression/condition that specifies the relevant element.
annotation	documentation  A relevant element can be used to define on which elements an expression depends.

complexType MStaticValue

diagram
namespace	http://jadex.sourceforge.net/jadex
type	restriction of MInternalExpression
used by	elements  MBeliefSet/fact MInitialBeliefSet/fact MTrigger/filter MPlan/precondition MPropertybase/property MParameterSet/value MPlanParameterSet/value MReferenceParameter/value MInitialParameterSet/value complexType  MPlanBody
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. evaluationmode   xs:string   prohibited         class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported   xs:boolean   prohibited   false
annotation	documentation  For a value that is only once computed.

complexType MTrigger

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MElement
children	internalevent messageevent goal filter
used by	elements  MMetaGoal/trigger MPlan/waitqueue complexType  MPlanTrigger
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Base trigger type allows reaction on goals, internal and message events and filters. All declared elements are considered as OR combined.

element MTrigger/internalevent

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MReference
children	parameter
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element in the same capability.
annotation	documentation  Any number of internal events that are triggers.

element MTrigger/messageevent

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MReference
children	parameter
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element in the same capability.
annotation	documentation  Any number of message events that are triggers.

element MTrigger/goal

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MReference
children	parameter
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. ref   xs:string   required         documentation  The name of the referenced element in the same capability.
annotation	documentation  Any number of goals that are triggers.

element MTrigger/filter

diagram
namespace	http://jadex.sourceforge.net/jadex
type	MStaticValue
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. class   xs:string   optional         documentation  The required Java class of the expression. Used for type checking the evaluation result. exported      prohibited         evaluationmode      prohibited
annotation	documentation  Deprecated. Can be used to specify an arbitrary complex filter expression that must evaluate to a IFilter and will be used to check if triggers.

complexType MTypedElement

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MReferenceableElement
children	assignto
used by	complexTypes  MBelief MPlanParameter
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string   required         documentation  The required Java class of the fact. Used for type checking objects that are asserted as facts. updaterate   xs:long   optional   0      documentation  For dynamic expressions the update rate defines in what intervals the fact will be re-evaluated. The default update rate is set to 0. transient   xs:boolean   optional   false      documentation  Transient beliefs or prameter values are not retained, when persisting or migrating an agent. This is useful e.g. when a value class is not serializable.
annotation	documentation  Base type for single-valued elements with a type.

complexType MTypedElementReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MElementReference
children	assignto concrete abstract
used by	complexTypes  MBeliefReference MParameterReference
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string            documentation  The class of the contained value. In the reference this value can be overridden to allow specializations for derived types.
annotation	documentation  Reference to a typed element.

complexType MTypedElementSet

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MReferenceableElement
children	assignto
used by	complexTypes  MBeliefSet MPlanParameterSet
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string   required         documentation  The required Java class of the fact. Used for type checking objects that are asserted as facts. updaterate   xs:long   optional   0      documentation  For dynamic expressions the update rate defines in what intervals the fact will be re-evaluated. The default update rate is set to 0. transient   xs:boolean   optional   false      documentation  Transient beliefs or prameter values are not retained, when persisting or migrating an agent. This is useful e.g. when a value class is not serializable.
annotation	documentation  Base type for multi-valued elements with a type.

complexType MTypedElementSetReference

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MElementReference
children	assignto concrete abstract
used by	complexTypes  MBeliefSetReference MParameterSetReference
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text. exported   xs:boolean   optional   false      documentation  If an element is exported it can be referenced from an outer capability. The default for this attribute is false. class   xs:string            documentation  The class of the contained value. In the reference this value can be overridden to allow specializations for derived types.
annotation	documentation  Reference to a typed element set.

complexType MUnique

diagram
namespace	http://jadex.sourceforge.net/jadex
type	extension of MElement
children	exclude
used by	element  MGoal/unique
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string            documentation  The elements name. description   xs:string   optional         documentation  The elements optional description text.
annotation	documentation  Uniqueness settings for goals. Excluded parameters will not affect if goals are considered equal.

element MUnique/exclude

diagram
namespace	http://jadex.sourceforge.net/jadex
attributes	Name   Type   Use   Default   Fixed   Annotation parameterref   xs:string   required
annotation	documentation  Any number of excluded parameters.

XML Schema documentation generated with XMLSPY Schema Editor http://www.altova.com/xmlspy
